Electrical Test Equipment With Printer Gf312b Portable 3 Phase Electricity Meter Calibrator - China

price: 16555.00 Dollar US$

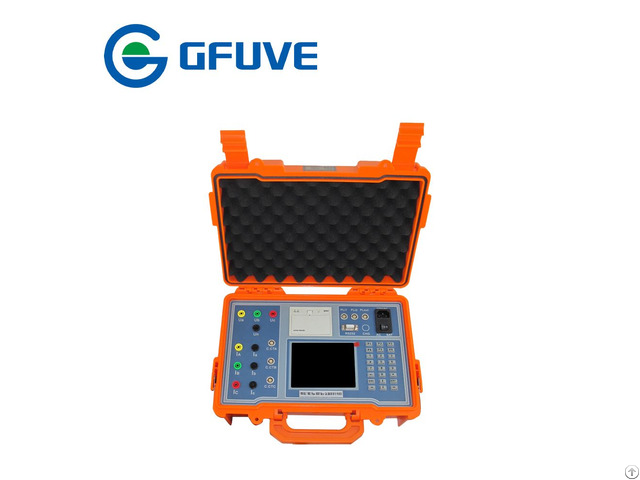

Electrical Test Equipment With Printer Gf312b Portable 3 Phase Electricity Meter Calibrator

Products Photos Catalog Electrical Test Photos Catalog

GF312B portable three phase energy meter calibrator with printer is used to calibrate three phase, single phase, active and reactive energy meters error.

And it also can be used as voltage, current and power meter to measure AC parameters of three phase power line.

It can measure wave distortion factor and 2nd to 64nd harmonic wave.

GF312B calibrator is used for grid corporation of measurement and energy test center, metrological service of power supply bureau, national energy measurement of testing authorities.

Specification

Warranty: 3 years

Power: Electronic

Customized support: OBM

Place of Origin: Beijing, China

Brand Name: GFuve

Model Number: GF312B

Accuracy: 0.05%, 0.1%, 0.2%

Power supply: 220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz

Test voltage range: 0-600V

Voltage test error: ±0.05% (30V-600V) or ±0.02% (30V-600V) ±0.1% (0.1V-30V)

Test current range: 1mA-12A

Active power error: ±0.05% (0.01A-12A); ±0.1% (0.001A-0.01A)

Reactive power error: ±0.1% (0.01A-12A)

Active energy error: ±0.05% (0.01A-12A); ±0.1% (0.001A-0.01A)

Reactive energy error: ±0.1% (0.01A-12A)

Weight: 3 kg


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email

Published date: January 31, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
