Electronic Pin Typ Double Wound Transformer Pa1135nl Vertical Mounted - China
price: check with company for price
PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer Feature: # Power Range: up to 30W # Height: 11.45mm Max # Footprint: 15.24mm x 13.1mm Max # Toplogy: Forward and Flyback PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer - - - - Electrical Specifications @ 25C - Operating Temperature -40C to +130C | Product name | Pri.
Inductance | (3-4) | 253.4 H 10% | PA1253NL | Lk.
Inductance | (3-4) with (8, 7, 6, 5) shorted | 12 H MAX | DCR | (3-4) | 420 m MAX | (2-1) | 335 m MAX | (5-6) | 9.5 m MAX | (7-8) | 7.2 m MAX | Hi-Pot | Pri-Sec | 1500Vrms | K1 Factor | 4671.8 | PA1277NL | Pri.
Inductance | (3-4) | 20.4H 10% | Lk.
Inductance | (3-4) with (10, 9, 8, 7) shorted | 1.5 H MAX | DCR | (3-4) | 80 m MAX | (6, 5-8, 7) | 7.5 m MAX | (2-1) | 150 m MAX | Hi-Pot | Pri-Sec | 1500Vrms | K1 Factor | 1002.9 | PA1282NL | Pri.
Inductance | (3-4) | 155 H 10% | Lk.
Inductance | (3-4) with (8, 7, 6, 5) shorted | 5 H MAX | DCR | (3-4) | 530 m MAX | (6, 5-8, 7) | 31 m MAX | (2-1) | 900 m MAX | Hi-Pot | Pri-Sec | 1500Vrms | K1 Factor | 3117.5 | PA1283NL | Pri.
Inductance | (3-4) | 155 H 10% | Lk.

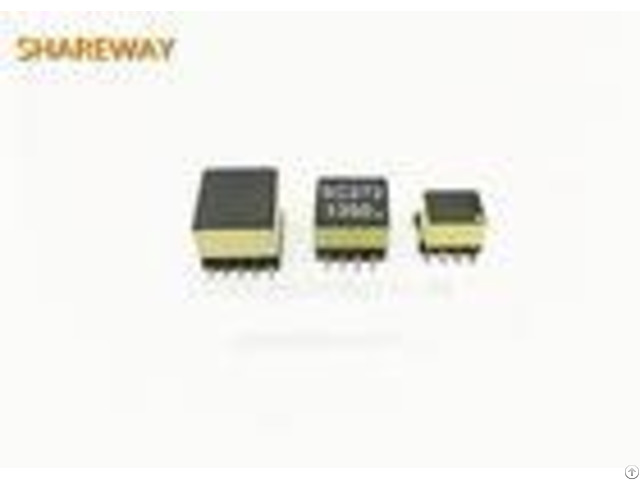

Inductance | (3-4) with (8, 7, 6, 5) shorted | 5 H MAX | DCR | (3-4) | 570 m MAX | (6, 5-8, 7) | 40 m MAX | (2-1) | 1000 m MAX | Hi-Pot | Pri-Sec | 1500 Vrms | K1 Factor | 3117.5 | - - - - PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer Shape and Dimensions: Product Picture: PA1135NL Electronic Pin-typ Double Wound Small Signal Transformer HOW TO ORDER 1 - Please send me your datasheet or part number you need.
2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.
4 - After sample testing, we will step into the mass order.
5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.
7 - We will track your goods until you receive the goods.
Remarks: 1 - Sample orders are avaliable.
2 - Price is negotiable for orders of large quantity.
3 - Customized orders (OEM/ODM orders) are avaliable.
4 - Contact us for available flavors list.
International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
Company Contact:
- Posted By: SHAREWAY TECHNOLOGY CO., LTD.
- Phone: 86-0755-32932627
- Address: C711 HUAQIAOXINCUN, MINZHI TOWN , LONGHUA NEW DISTRICT , 518131 , SHENZHEN ,CHINA, Shenzhen , guangdong , China
- Email:
Published date: January 8, 2018
- Business Description: Established in 1998, we have around 500 staff at present.
With the abundant productive capacity , we are able to delivery the goods within the short time.
Moreover, we can provide the professional complete solution for PoE appliication.
