Epm 4001 Detector Assembly Pulse Oximetry Sensor - China
price: contact company for price
MEAS Detector Assembly
EPM-4001
Photo Optic Sensor /
• Silicon Photodiode
• Lead Frame Construction
• Pulse Oximetry Component
/

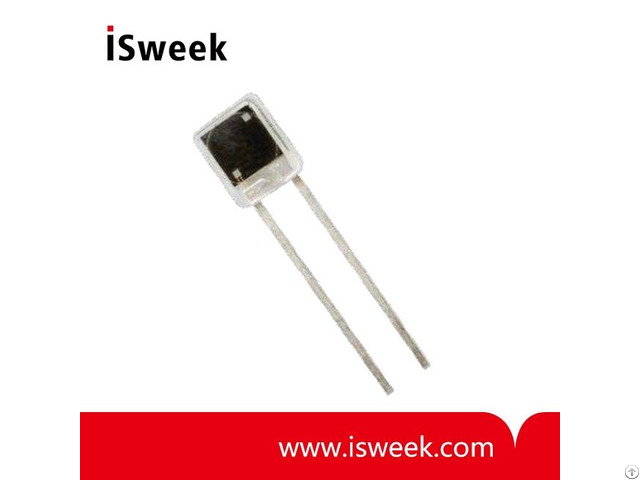

The EPM-4001 Detector Assembly uses a silicon planar diffused photodiode specially designed for medical applications.
It features high efficiency and fast response.
The EPM-4001 Detector Assembly is spectrally matched to emitter assemblies ELM-4001, ELM-4002 and ELM-4003.
/
EPM-4001 Detector Assembly Pulse Oximetry Sensor Features
• Low Cost
• Fast Response
• Matched to 660nm Emitters
• High Efficiency
• Clear Epoxy Lens
• Compact Package
• Active Area: 8.23mm2
/
EPM-4001 Detector Assembly Pulse Oximetry Sensor Applications
• Pulse Oximetry
• Finger/Ear Probes
• Disposable Strip or Butterfly Sensors
