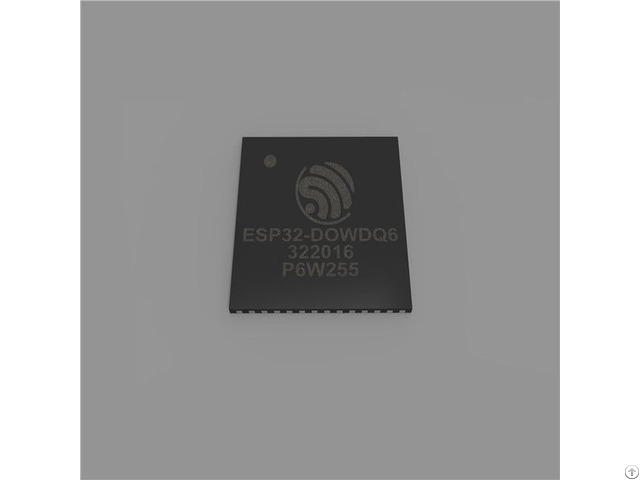

Esp32 D0wdq6 Dual Core Bluetooth Wifi Chip Used For Smart Home - China

ESP32 is a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip designed with the TSMC ultra-low-power 40 nm technology.

It is designed to achieve the best power and RF performance, showing robustness, versatility and reliability in a wide variety of applications and power scenarios.

The ESP32 series of chips includes ESP32-D0WDQ6, ESP32-D0WD, ESP32-D2WD, and ESP32-S0WD.

For details on part numbers and ordering information, please refer to Part Number and Ordering Information.

1.2 Wi-Fi Key Features • 802.11 b/g/n

• 802.11 n (2.4 GHz), up to 150 Mbps

• WMM

• TX/RX A-MPDU, RX A-MSDU

• Immediate Block ACK

• Defragmentation

• Automatic Beacon monitoring (hardware TSF)

• 4 × virtual Wi-Fi interfaces • Simultaneous support for Infrastructure Station, SoftAP, and Promiscuous modes Note that when ESP32 is in Station mode, performing a scan, the SoftAP channel will be changed.

• Antenna diversity 1.3 BT Key Features • Compliant with Bluetooth v4.2 BR/EDR and BLE specifications

• Class-1, class-2 and class-3 transmitter without external power amplifier

• Enhanced Power Control

• +12 dBm transmitting power

• NZIF receiver with –97 dBm BLE sensitivity

• Adaptive Frequency Hopping (AFH)

• Standard HCI based on SDIO/SPI/UART

• High-speed UART HCI, up to 4 Mbps

• Bluetooth 4.2 BR/EDR BLE dual mode controller

• Synchronous Connection-Oriented/Exten ded (SCO/eSCO)

• CVSD and SBC for audio codec

• Bluetooth Piconet and Scatternet

• Multi-connections in Classic BT and BLE

• Simultaneous advertising and scanning

Company Contact:

• Posted By: Wireless-tag Technology CO.,LTD

• Phone: 075522677752

• Address: Building A, Chengshishanhai Center, No.11 Zhongxing Road,, SHENZHEN , Guangdong , China

• Email:

• Website: http://www.wireless-tag.com

• Business Description: Wireless-Tag is authorized distributor of Espressif for 5 years and have factory for 13 years.

  We can offers IoT modules: Wi-Fi module, BLE module including BLE4.2 and BLE5.0, Wi-Fi and BLE combo module, LoRa module, Sub 1G RF module.

  Embedded module and related solutions' customize based on I.

  MX6 series, 9854 Series.

  These products can be used widely in IoT applications and Industrial control systems.

  Here is the website page for your quick glance: http: //www.

  wireless-tag.

  com/ , datasheets and CE certification can be downloaded also.

  Please let us know if there is any information you need.

  We are looking forward to cooperate with you.
