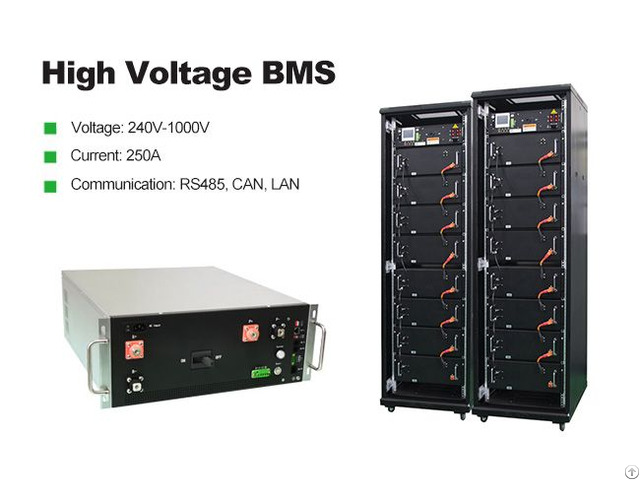

Ess Solar Energy Storage Lifepo4 16s Lithium Battery Bms 512v 160a - China

512VDC160A BMS Communication protocol:

Rs485, CAN, LAN, Modbus * 4U standard 19inch case * Efficient, stable and reliable * Size: W482*H180*D500mm Accessories:

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V, 12V power

supply, consumption less 20mA, CAN2.0 B communication Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm, 900mm, 1200mmtempreture sensor wire: standard length is 600mm, 900mm, 1200mm

Fan wire: 600mm Wire harness-communication wire

Communication wire is connecting from the master BMS to each BMU with a cascade connection, the last port is for terminal resistance item: High voltage BMS

Place of Origin: China

Application: Solar Energy Storage Systems

Brand Name: GCE

Model Number: 10

Model Number: RBMS07-S20-160A512V

Product name: 4U BMS

protecting method: MCCB+Contactor

Current Sampling Accuracy: 1.0%FSR

Battery Type: LFP/NMC/LTO

Communication: Rs485/CAN/LAN/dry contact

Voltage: 512V

Rated Current range: -160~250A

Voltage Range: 384V-1000V

Application: BESS/UPS/Telecom Base Station

module strings: 16S*10pcs

Power: 24VDC(18~28V)

Power consumption: ≤20W

Communication with monitoring software/EMS: Ethernet

High voltage power module: Support DC start (optional)

Way out: Front

Center Tap: Support(Optional)

Net weight: 28kg

Size(W*H*D)mm: 4U (440*178*600) Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium batteries.

The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability, and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries.

Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
