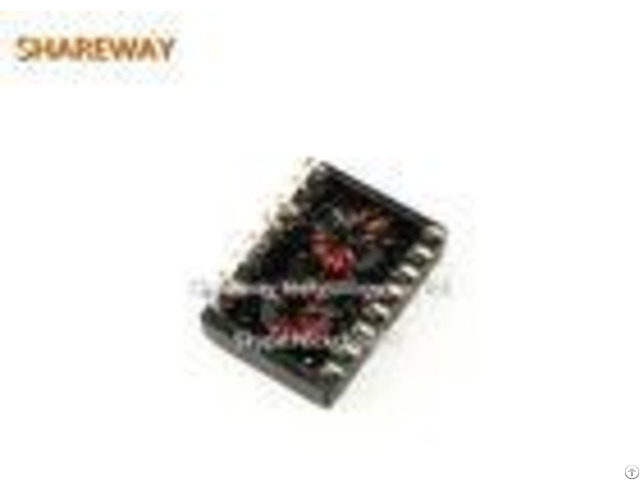

Ethernet Interface Magnetic Core Transformer 100base T 23z91smnl Single Phase - China

price: check with company for price

23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface PRODUCT DETAILS: # ROHS COMPLIANT.

# HEADER : PHENOLIC WITH FLAMMABILITY RATING UL 94V-O OR BETTER.

# SOLDERABILITY: CONFORMS TO ANSI/J-STD-002 245 REFLOW PEAK TEMPERATURE PER IPC/EIA J-STD-003A # OPERATING TEMPERATURE: 0 TO 70 # STORAGE TEMPERATURE : -20 TO +125 # JEDEC MOISTURE: LEVEL 1 - # DIMENSIONS ARE IN INCHES WITH THE FOLLOWING TOLERANCES: .

XX = .

0.1 .

XXX = .

005 ELECTRICAL CHARACTERISTICS AT +25 UNLESS OTHER SPECIFIED - - - - PARAMETER | SPECIFICATIONS | OPERATING TEMPERATURE | 0 TO +70 | TURNS RATIO | 1 : 1 2% | POLARITY | PER SCHEMATIC | CAPACITANCE WINDING TO WINDING | 10 pF MAX ( AT 100 KHz 20 mVRMS) | DC RESISTANCE | 0.3 OHMS MAX | LEAKAGE INDUCTANCE | 0.2 uH MAX | PRIMARY INDUCTANCE | 100uH 20% ( AT 100 KHz 20 mVRMS ) | INPUT -OUTPUT ISOLATION | 1500 VRMS MIN @ 60 SECONDS | - - - - 23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface PRODUCT PICTURE 23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer


Company Contact:


  • Phone: 86-0755-32932627

  • Address: C711 HUAQIAOXINCUN, MINZHI TOWN , LONGHUA NEW DISTRICT , 518131 , SHENZHEN ,CHINA, Shenzhen , guangdong , China

  • Email: Email


Published date: January 8, 2018

  • Business Description: Established in 1998, we have around 500 staff at present.

    With the abundant productive capacity , we are able to delivery the goods within the short time.

    Moreover, we can provide the professional complete solution for PoE appliication.
