Explosion Proof Cable Clamping Sealed Gland Shbdm 15 - China
price: contact company for price

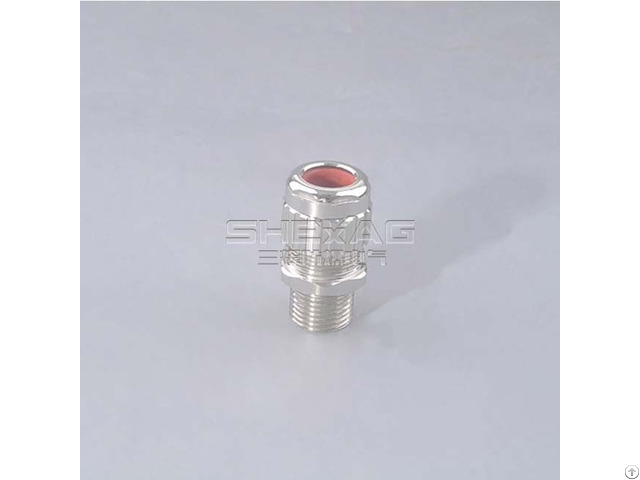

explosion-proof cable clamping sealed gland SHBDM-15 Cable Gland
Product Features:
1 - Brass or stainless steel, brass surface nickel planted
2 - Mechanical cable clamping device
3 - It is suitable for the installation of an enclosure for cable entry.
Specifications Cable Range(mm) SW(mm) Thread length L1(mm) Length L2(mm) Ex-mark Protection Level
M20S*1.5 5.5-12 24 16 38 Exd IIC Gb/Exe II Gb/Ex tD A21 IP68 IP68
M20*1.5 9.5-16 24 16 38 M25*1.5 12.5-20.5 30 16 38 M32*1.5 16.9-26 36 18 44 M40*1.5 22-33 45 18 46 M50*1.5 28-31 55 20 50 G1/2 5.5-12 24 16 38 G1/2 9.5-16 24 16 38 F3/4 12.5-20.5 30 16 38 G1 16.9-26 36 18 44 G1 1/4 22-33 45 18 46 G1 1/2 28-31 55 20 50 G2 36-52.6 68 20 64 NPT1/2 5.5-12 24 16 38 NPT1/2 9.5-16 24 16 38 NPT3/4 12.5-20.5 30 16 38 NPT1 16.9-26 36 18 44 NPT1 1/4 22-33 45 18 46 NPT1 1/2 28-31 55 20 50 NPT2 36-52.6 68 20 64
Company Contact:
- Phone: 86-15158755610
- Address: Jiadong Industrial zone, yueqing , zhejiang , China
- Email:
Published date: July 18, 2018
- Business Description: Professional manufacturer of all kinds of cable glands, cable accessroeis, and some Ex-proof products in China
