Explosion Proof Linear Electric Actuators Le 250 - Taiwan

price: contact company for price

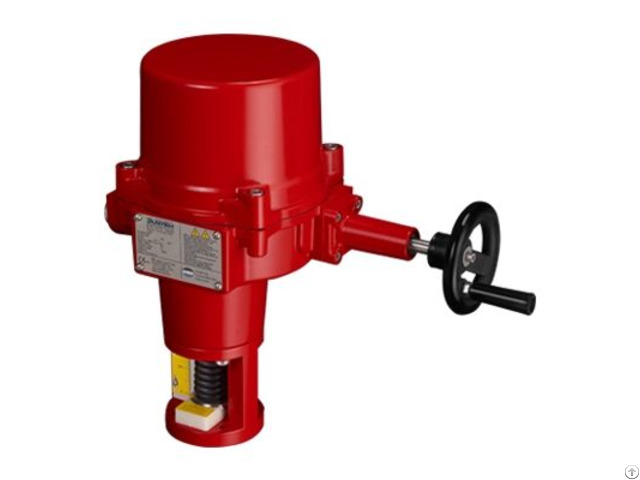

Explosion Proof Linear Electric Actuators Le 250

Products Photos Catalog Explosion Proof Linear Photos Catalog

Description: Thrust: 250 kg/550 lb

Weight: 9.5 kg/21 lb Motor: 15w

Mounting Flange(ISO 5210): F07

Max.

Stroke: 50 mm/1.969 inch Feature:

Enclosure conforms to IP68 (up to 72 hours, under water 7 m) with explosion-protected performance.

Self-locking drive system.

DC motor equipped.

External stem position indicator.

Low-power consumption.

Manual operation can be applied in case of power outage.

Built-in thermal protection prevents motor burnout.

Control：

Standard：Modulating

Options：Floating

Conduit entrance :

Standard: 1/2 ” NPT

Optional: 3/4” NPT, M20, M25


Company Contact:


  • Phone: 886-4-26985666

  • Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan

  • Email: Email


Published date: August 6, 2019

  • Business Description: Established in 1986, Sun Yeh Electrical Ind.

    Co., Ltd. offers Electric and Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator widely applied to the control on industry, water treatment, air conditioning, etc.
