Explosion Proof Quarter Turn Electric Actuators Ome A - Taiwan

price: contact company for price

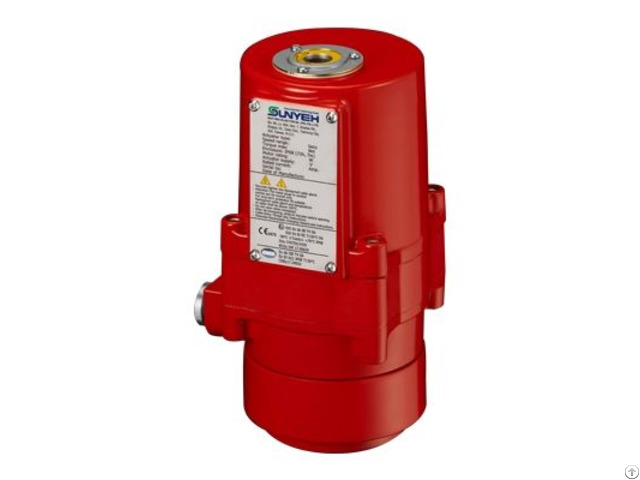

Explosion Proof Quarter Turn Electric Actuators Ome A

Products Photos Catalog Explosion Proof Photos Catalog

Description: Power: 10W Max Torque: 50 N•m/445 in•lb

Speed: 27 Sec/90° Weight: 3 kg/7 lb Manual Override: N/A

Mounting Flange(ISO 5211): F05/F07 Feature:

Enclosure conforms to IP68 (up to 72 hours, under water 7 m) with explosion-protected performance.

Self-locking gear system.

Clutch-less manual override.

ISO 5211 Mounting Flange.

Mechanical stops.

Continuous mechanical position indicator.

Built-in thermal protection prevents motor burnout.

Control：

Standard：F-Floating

Options：M-Modulating

Conduit entrance :

OME-A, OME-AM, OME-1

Standard：1/2” NPT

Optional：M20

OME-2~8

Standards：1/2” NPT

Optional：3/4” NPT, M20, M25


Company Contact:


  • Phone: 886-4-26985666

  • Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan

  • Email: Email


Published date: August 6, 2019

  • Business Description: Established in 1986, Sun Yeh Electrical Ind.

    Co., Ltd. offers Electric and Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator widely applied to the control on industry, water treatment, air conditioning, etc.
