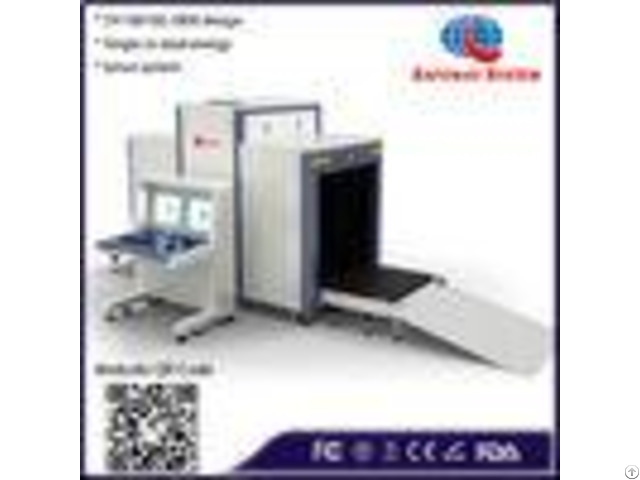

Explosives Inspection Package X Ray Scanner Customized Bag Checking Machine - China

- - - - Product highlights

* Linux operation system

* ARM CPU

* Digital signal and processor

* Continous hard work for 10000 hours

* Energy saving design

* High penetration

* Good quality images | Physical Specifications | | Unit weight (kgs) | 850 | Unit size (mm) | 3638(L)*1295(W)*1916.5(H) | after packed in wooden pallet - | | Gross weight (kgs) | 950 | Packing size | #1: 287*142*213cm | | #2: 113*89*142cm | | General Specifications | | Tunnel size(mm) | 1010(L)*1003(W) | Conveyor Speed(m/s) | 0.2 | Conveyor height(mm) | 334.5 | Conveyor Max Load(kgs) | 200 | X ray dose per each inspection | Typical 1.5 Gy/h, guarantee 2.0 Gy/h | X ray leakage | Typical 1.0 Gy/h, guarantee 1.5 Gy/h | Penetration | Typical 30mm, guarantee 27mm | Wire Resolution | Typical AWG34, guarantee AWG32 | Penetration Resolution | Typical AWG24, guarantee AWG24 | Spatial resolution: | Typical dia2.0mm, Vertical: dia2.0mm; Guarantee dia2.0mm, Vertical: dia2.0mm; | Power Consumption | max.

1KW | Noise | < 60 dB | Film Safety | Guarantee ASA/ISO1600 Film | | | X-ray Generator (single) | | Anode Voltage | 140 KV | Anode power | 0.8mA | Generate angle | 80 degree downward | Generate direct | from top to bottom | Cooling / Duty Cycle | Oil Cooling /100% | Brand | local made | | | Image System | | X-ray Sensor | L-Shaped Photodiode Array (multi-energetic), 16bit Deep | Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 65536 | Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low

penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

| Image Recall | All preceding images recallable, retrieval | Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature | High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands | Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability | Image Archive | Up to 200, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats | Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.

| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

| Images process | 24bit real time processing, 4colors analysis, Images displayed marked date and ID NO, Count the number of bags | | | Operating Environment | | Operation temperature/Humidity | 0-45 / 5%-95%(non-condensing) | Storage Temperature/Humidity | -40to 70 / 5%-95%(non-condensing) | Operation Power | 220VAC(10%) 503Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) | UPS | 15mins, 30mins, 60mins etc, optional | | | Computer and other | | Monitor | High Resolution Color, LCD Accord, 17inch | Hard Disk | SEAGATE 500G 3.5 | CPU | Cortex A9 | Storage | 1G | Main board | Safeway IMX6_mainboard-V030 | | | Compliance | | International | * ISO19001 ; ISO14001 ; OHSMS18001 ;

* CE

* USA FDA

* Maximum X-ray leakage of less than 5 Sv/h(0.5mR/h) measured at 5cm from any external surface.

(European standard - less than 1 Sv/h(0.1mR/h) measured at 10cm from any external surface) | National (China) | * Health Inspection Report

* Computer Software Copyright Registration Certificate

* Software Product Registration Certificate

* Radiation Safety Certificate from Ministry of Public Security

* Quality Certification from Safety and Police Electronic Products Quality Inspection Center

* Design pantent certification: Patent No.

: 201020700245.2 ; Patent No.

: 201020700245.8 ; Patent No.

: 201020700256.0 | - - - -
