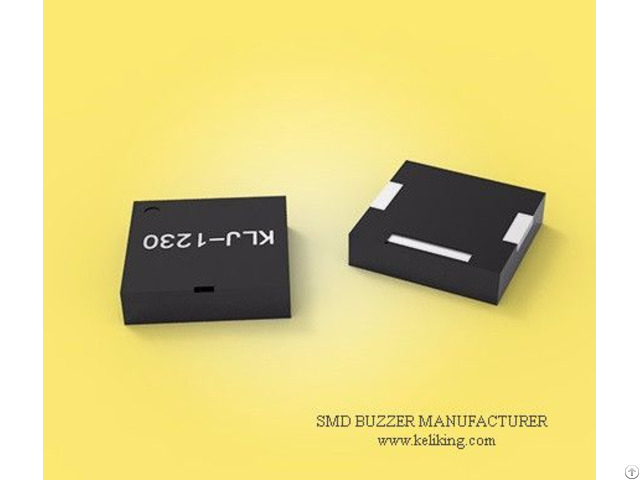

External Drive Piezo Smd Buzzer Audio Transducer Klj 1230 - China

price: 0.41 Dollar US$

External Drive Piezo Smd Buzzer Audio Transducer Klj 1230

Products Photos Catalog External Drive Piezo Photos Catalog

Parameters of KLJ-1230 Operating Voltage: Max20Vp-p Current Consumption: Max 1mA at 3Vp-p/Square Wave/4.1KHz Sound Pressure Level: Min 83dB at 10cm/ 3Vp-p/Square Wave/4.1KHz Electrostatic Capacity: 16000±30%pF at 1 KHz/1V Operating Temperature(℃): -20~ +85

Storage Temperature(℃): -30 ~ +85

Environment Compulsory Standard: ROHS

PS: Vp-p=1/2duty, square wave Audible distance at rated vol: 5m

Application: House-held electronic medical devices, Central air-conditioning controller, motor central lock actuator, car seat for children and more


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.

Related listings



  • Power Saving Piezo Buzzer For Pos Machine Klj 1102
    Power Saving Piezo Buzzer For Pos Machine Klj 1102
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.45 Dollar US$

    Specification of KLJ-1102 Operating Voltage: Max25Vp-p Current Consumption: Max 3mA at 5Vp-p/Square Wave/4.1KHz Sound Pressure Level: Min 70dB at 10cm/ 5Vp-p/Square Wave/4.1KHz Electrostatic Capacity: 12000±30%pF at 1 KHz/1V Operating Temperature(℃):...

  • Smd Buzzer Piezo Speaker Power Saving Klj 9019
    Smd Buzzer Piezo Speaker Power Saving Klj 9019
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.50 Dollar US$

    Specification of KLJ-9019 Resonant Frequency(KHz) 4.0±0.5 Operating Voltage(Vp-p) 1-25 Rated Voltage(Vp-p) 3 Sound Output at 10cm(dB) 65(at 3Np-p square wave 4.0kHZ) Operating Temperature(℃) -40~ +85 Storage Temperature(℃) -30 ~ +85 Environment Compu...

  • Passive Magnetic Buzzer Speaker Alarm Acoustic Component Klj 9032 5027
    Passive Magnetic Buzzer Speaker Alarm Acoustic Component Klj 9032 5027
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.33 Dollar US$

    Parameters of KLJ-9032-5027 Oscillation Frequency(Hz) 2731 Operating Voltage(Vp-p) 4.5-6.5 Rated Voltage(Vp-p) 5 Current Consumption(mA/max) 90 at Rated Voltage Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage Coil Resistance(Ω) 25±3/31±4 Ope...
