External Drive Piezo Smd Buzzer Klj 1325 - China

price: 0.40 Dollar US$

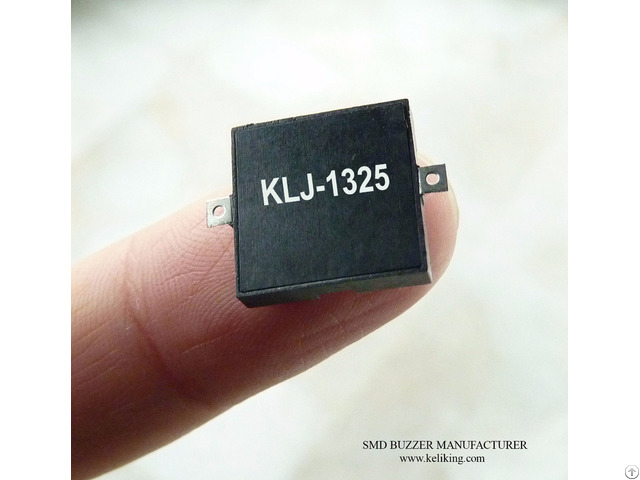

External Drive Piezo Smd Buzzer Klj 1325

Products Photos Catalog External Drive Piezo Photos Catalog

Specification of KLJ-1325 Operating Voltage Max25Vp-p

Current Consumption Max 3mA at 5Vp-p/Square Wave/4.1KHz

Sound Pressure Level Min 80dB at 10cm/ 5Vp-p/Square Wave/4.1KHz

Electrostatic Capacity 15000±30%pF at 1 KHz/1V

Operating Temperature(℃) -20~ +85

Storage Temperature(℃) -30 ~ +85

Environment Compulsory Standard ROHS

PS: Vp-p=1/2duty, square wave Audible distance at rated vol.

3m

Application Smart electronic devices, home appliances and more


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.
