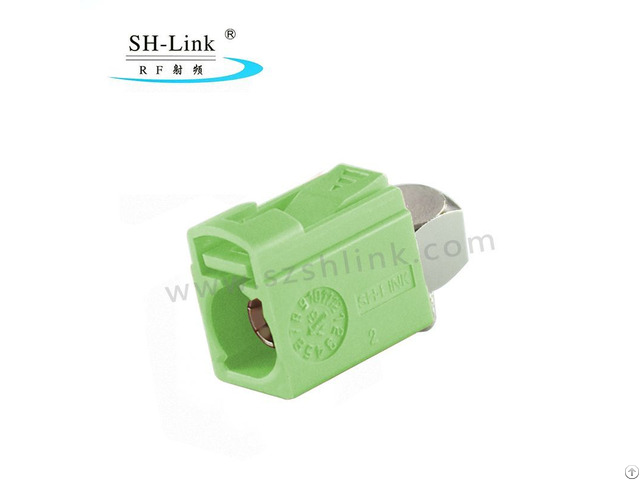

Fakra N Female Right Angle Crimp Solder Connector - China

Fakra N Female Right Angle Crimp Solder Connector for RG174 RG316 Cable SHM.

900.0003-4 - N

FAKRA Connector is one of the auto parts.

They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc.

FAKRA Straight Female Connector is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.

double locked Female Connector factory Major characteristics:

Double-locked, fool-proofing assembly with the color and the structure

The connector is be protected by the cap .

Easy to assembly

Many difference between the connector and the cap.

The FAKRA right angle Female Connector technical characteristics:

Body: Brass, Ni-plated

Socket: beryllium-copper, Gold-plated

Pin contact: Brass

Insulator: PTFE

Crimp ferrule: brass, Ni-plated

O-ring: beryllium-copper

Shell: PA66+30%GF

GPS FAKRA Connector Technical characteristics

Impedance: 50Ω

Frequency Range: 4GHz

Withstanding Voltage: 1000V(RMS)

Contact resistance:

Center contact: ≤ 20m

Outer contact: ≤10m

Insulation: ≥1, 000MΩ

VSWR: DC - 2GHz<1.2

FAKRA auto connector Mechanical characteristics:

Assembly: locked

Durability: ≥ 500 cycles

Temperature: - 40 - +85°C
