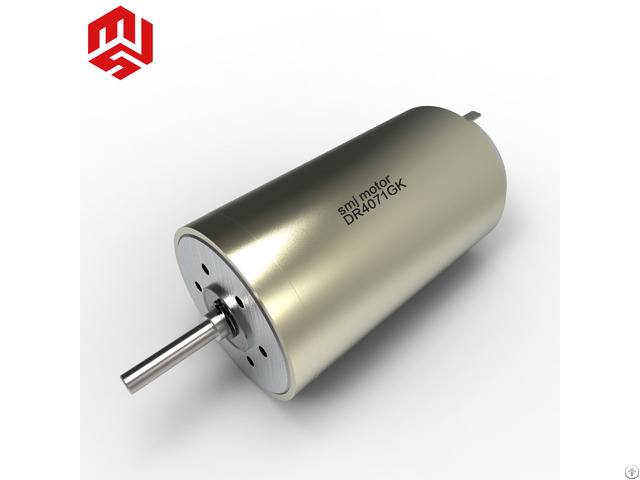

Fast Speed Mini 24v High Presion Graphite Brushed Dc Motor - China

Series: DR4071GK

High speed mini 24v high rmp high presion graphite brushed dc motor Warranty: 3months-1year


Place of Origin: Shanghai, China

Brand Name: SMJ

Usage: BOAT, Car, Electric Bicycle, SMART HOME, automation and robotics

Type: Brush Motor

Torque: 220mNm

Construction: Permanent Magnet

Commutation: Brush

Protect Feature:

Totally Enclosed

Speed(RPM): 7000rmp

Continuous Current(A): 2.65-6.06A

Efficiency: IE 1

Torque max: 220mNm

Stall Torque: 1246mNm

Diameter: 40mm

Length: 72.3mm

Motor type: Ironless

Brush type: graphite brushes (made in Japan)

Certification: CE The motor can repalce Maxon motor RE 148866 and 148867 and please contact with for more details.

Coreless DC motor Application:

1 - The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.

2 - Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.

3 - Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.

4 - Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.

5 - Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office equipment, without the need to make the products bigger.

6 - Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.
