Fecs40 1000 Carbon Monoxide Co Sensor - China

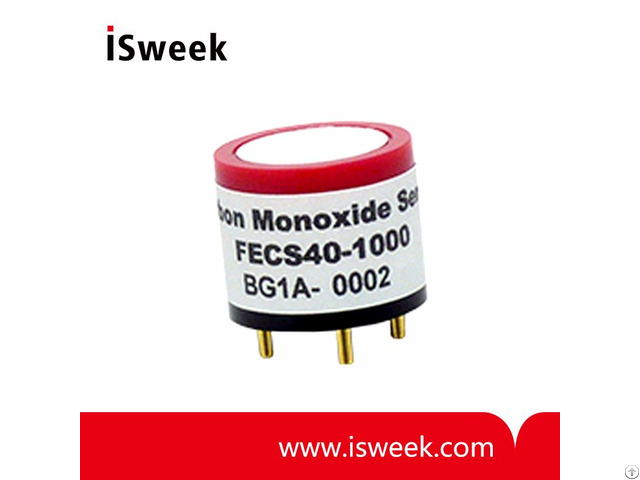

FECS40-1000 for the Detection of Carbon Monoxide Figaro’s Carbon Monoxide Sensor FECS40-1000 is a unique electrochemical-type carbon monoxide sensor.

Its most notable feature is its unique leak-proof structure, making it ideal for CO monitors and detectors in various fields.

FECS40-1000 ​Carbon Monoxide (CO) Sensor ​Features:

* High sensitivity/selectivity to CO

* Quick response to CO

* Linear output

* Long life

* Stable baseline

* Unique leak-proof structure FECS40-1000 Carbon Monoxide (CO) Sensor ​Applications:

* Portable and fixed installation CO monitors

* CO detectors

* Ventilation control for indoor parking garages FECS40-1000 Carbon Monoxide (CO) Sensor ​Specifications:

Detection Gas: Carbon Monoxide

Detection Range: 0 ~ 1000 ppm

Maximum Overload: 1500 ppm

Output Signal: 70 ± 15 nA/ppm (*)

Repeatability: ±2% (*)

Resolution: 1 ppm (*)

Typical Baseline Range (Pure air): -2 ppm to +3 ppm (*)

Typical Response Time (t 90 ): < 30 sec (*)

Baseline Shift (-20 ~ 50˚C): < 10 ppm (*)

Long Term Output Drift: < 5% /year (*)

Expected Life Time: 3 years (*)

Operating Temperature: -20 ~ 50˚C

Operating Humidity: 15 ~ 90% RH

Operating Pressure Range: 1013 hPa ±10%

Recommended Load Resistor: 10 Ω

Bias Voltage: Not required

Position Sensitivity: None

Recommended Storage Temp: 0 ~ 20˚C

Storage Life: 6 months

Cap Color: Red

Weight: 4.5g (approx.

)

(*) Performance data conditions: 20 ˚C, 50%RH and 1013 hPa.
