FECS42-20 for the Detection of Nitrogen Dioxide

/

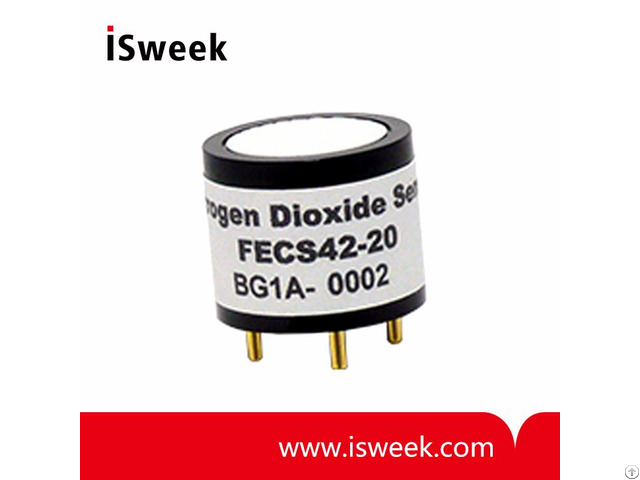

Figaro's Nitrogen Dioxide Sensor FECS42-20 is a unique electrochemical-type nitrogen dioxide sensor.

Its most notable feature is its unique leak-proof structure, making it ideal for NO2 monitors and detectors in various fields.

/

FECS42-20 Nitrogen Dioxide (NO2) Sensor Features:

* High sensitivity/selectivity to NO2

* Quick response to NO2

* Linear output

* Long life

* Stable baseline

* Unique leak-proof structure

/

FECS42-20 Nitrogen Dioxide (NO2) Sensor Applications:

* Portable and fixed installation NO2 monitors

* NO2 detectors

* Ventilation control for indoor parking garages

/

FECS42-20 Nitrogen Dioxide (NO2) Sensor Specifications:

Detection Gas: Nitrogen Dioxide

Detection Range: 0 ~ 20 ppm

Maximum Overload: 150 ppm

Output Signal: -600 ± 150 nA/ppm (*)

Repeatability: ±2% (*)

Resolution: 0.1 ppm (*)

Typical Baseline Range (Pure air): < ±0.2 ppm (*)

Typical Response Time (t90): < 25 sec (*)

Baseline Shift (-20 ~ 40˚C): < 0.2 ppm (*)

Long Term Output Drift: < 2% /month (*)

Expected Life Time: > 3 years (*)

Operating Temperature: -20 ~ 50˚C

Operating Humidity: 15 ~ 90% RH

Operating Pressure Range: 1013 hPa ±10%

Recommended Load Resistor: 33Ω

Bias Voltage: Not required

Position Sensitivity: None

Recommended Storage Temp: 0 ~ 20˚C

Storage Life: Less than 6 months

Cap Color: Black

Weight: 4.5g (approx.

)

(*) Performance data conditions: 20 ˚C, 50%RH and 1013 hPa.
