Ferrite Core Transformer For Dc Converters - China

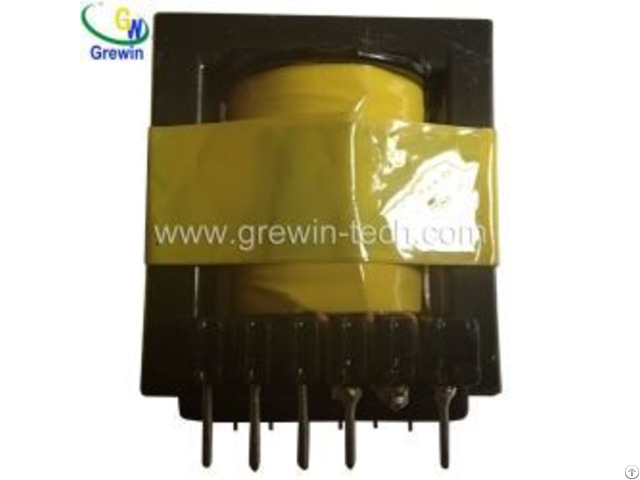

Name: Ee High Frequency Transformer for PCB Circuits

EE type Transformer Parameters Brand Name; GREWIN Transformer Core structure; lamination Coil number; Autotransformer Place of Origin; China Coil Material; ferrite Coil structure; toroidal Usage; High Frequency Model : EE Phase; single Application; High-frequency switching power supply and High-frequency inverter power transformer.

PBX Deliver time; Within 10 working days Package; Customized standard cartons ATTENTION; YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT Type Core "E" Dimension A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) EE13 12.6 6.5 4.5 3.7 8.9 3.7 EE14 14.3 7.8 5.2 4.3 10.5 4.5 EE16 16.0 8.2 5.7 4.7 11.3 4.7 EE20 20.4 10.1 7.0 5.9 14.1 5.9 EE25 25.0 12.8 8.7 7.5 17.5 7.5 EE30 30.0 15.2 9.7 7.2 19.5 7.3 EE32 32.0 16.4 11.2 9.5 22.7 9.5 EE36 36.0 18.0 12.0 10.2 24.5 11.5 EE42 42.0 21.0 14.8 17.2 29.5 15.2 EE55 55.0 27.8 18.5 17.2 37.5 21.0 EE65 65.0 32.8 22.2 20.0 44.2 27.4 EE70 70.5 33.2 21.9 22.0 48.0 32.0 1).

Features: Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm

structure, can fine-tune the inductance, etc., are widely used in fax

machines, PBX.

2).

Applicable frequency range: 20 to 100kHz :

Operating frequency: higher than 200kHz

High magnetic flux and low loss magnetic materials

With low leakage inductance and high efficiency .

3).

Applications: PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and

instruments.

UL insulation system for Class B (130), F (155), H (180) 4).

Can make other customized Ferrite transformers:

Power range: core type using N67 grade material

<5: RM4, P11/7, EF12.6 and U10

5 to 10: E (F) 16, RM5 and P14/8

10 to 20: RM6, E (F) 20, P18, U15 and EFD15

20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20

50 to 100: ETD29, ETD34, RM12, P30 and EFD25

100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30

200 to 500: ETD44, ETD49 and E55

>500: ETD54, ETD59 and E65 Other Related High Frequency Transformer Parameters: Table1: EFD type Transformer Parameters Model Pin Dimension A B C D E EFD-12 8 6 17 20 3.0 13.5 EFD-15 10 7.3 18.2 21.35 2.5 15 EFD-15 10 7.5 19.3 22.6 3.0 16.7 EFD-20 10 9.4 25.3 27.7 3.75 21.7 EFD-20 12 9.7 24 26.8 3 20 EFD-25 10 13.4 29.7 35.4 5 25 EFD-25 10 12.6 29.7 31.5 5 25 EFD-30 12 12.6 31.6 35.5 5 30 Table2: EPC type Transformer Parameters Model Dimension (mm) VA Weight A B C f=50KHz f=100KHz g EPC-9.5 10 5.5 10 1.1 2.5 9 EPC-13 14 9 14 5 8 11 EPC-17 19 11 18 14 20 18 EPC-19 20 13 21 18 27 21 EPC-25 27 17 26 36 59 29 EPC-27 29 17 36 52 75 35 Table3: ER type Transformer Parameters ER Transformer Specification Model PIN Dimension A B C+/-0.5 D+/-0.5 E F ER25.5 8 19.5 19.7 12.5 4 5 25.5 ER28 12 30.5 23 17.5 4 5 31 ER28 12 23.1 28.2 25 4 5 29.1 ER28 12 36 27 20 4 5 30 ER28 12 26.3 37.1 30 4 5 30.2 ER33 14 37.5 28 22.5 4 5 36 ER35 14 43.5 28 22.5 4 5 35.5 ER35 16 29.1 40.3 35.4 4 5 40.3 ER39 16 46 31.1 25 4 5 43.1 ER39 16 33 41.5 30.85 4 7.5 42.3 ER40 16 48 31.1 25 4 5 43.1 ER4215 14 45.5 30 25 4 5 42 ER4220 14 44 37.5 36 4 5 42 5)Advantage:

1 - UL, CUL, CE, CB ISO9001: 2008

2 - We offer custom-made transformers, OEM and ODM are welcome

3 - We deliver the quality you expect at consistently competitive prices

4 - Transformer quality lifetime: 10 Years.

5 - Specialty Sales service: 5 -10 Years

6 - Transformers Test: 100% test before the shipment About us: 1).

Tianjin Grewin Technology Co., ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

2).

Terms of Shipment:

Within 10 working days after received related prepayment or L/C.
