Flame 60a 12s Electronic Speed Controller Esc - China
price: contact company for price

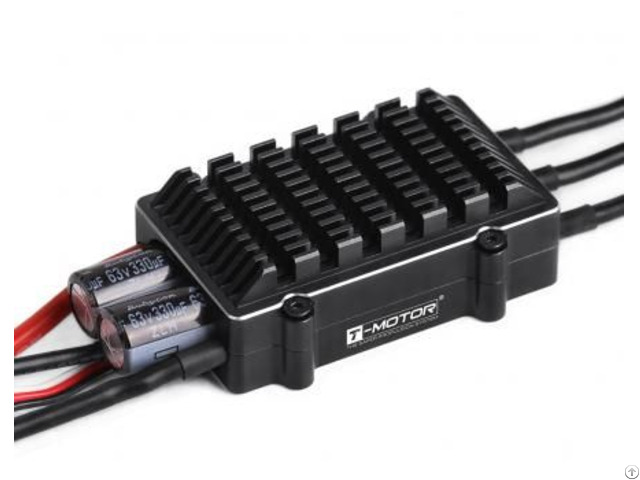

FLAME 60A 12S Electronic Speed Controller (ESC)
Product Description
This ESC is specially designed for multi-rotors.
1 - Start-up Protection: The T-MOTOR ESC will shut down the motor when it fails to start the motor normally in 2 seconds by increasing the throttle value.
In this case, you need to move the transmitter throttle stick back
to the bottom position and restart the motor.
(Possible causes: poor connection or disconne-ction between ESC and motor wires; propellers are blocked etC.
)
2 - Throttle Signal Loss Protection: When the ESC detects loss of signal for over 0.25 second, it'll cut off the output immediately to avoid greater loss which may be caused by the continuous high-speed rotation of propellers or rotor blades.
ESC will resume the corresponding output when normal signals are received.
3 - Motor Lock-up Protection: The ESC will try to restart the motor (thrice) when motor lock-up is detected; if it fails, it will cut off the output and stop attempting.
To restart the ESC and resume its output,
Company Contact:
- Posted By: Jiangxi Xintuo Industrial Co., Ltd
- Phone: 86-0791-88556889
- Address: NO.888 Tianxiang North AVE, Gaoxin DISTRICT, NANCHANG , JIANGXI , China
- Email:
- Website: https://store.tmotor.com/
Published date: March 20, 2024
- Business Description: T-MOTOR, a world renowned company, providing propulsion system solution for UAV with advanced technology is specializing in Motors, ESCs (Electronic Speed Controller) and Propellers.
Widely used for aerial photography, industrial, agricultural, and commercial applications, our products obtain high reputation for the high quality.
