Flexible Pcb - China

price: contact company for price

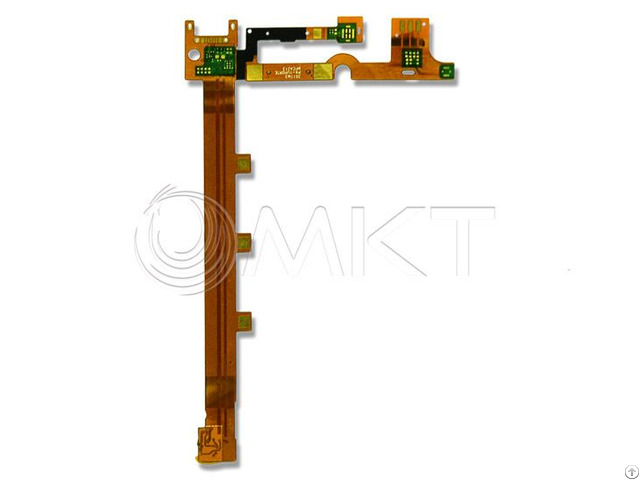

Flexible PCB

Flexible Circuit Fabrication

A Flex Printed Circuit or Flex PCB is a basically a flexible Base material, with a patterned arrangement of printed circuitry on Copper and components, with or without flexible overlay.

These flexible electronic assemblies may be fabricated using the same components used for rigid printed circuit boards, but allowing the board to conform to a desired shape (flex) during its application.

Flexible PCB / FPCB Applications

FPCBs are used widely in everyday technology and electronics in addition to high-end, complex completed components.

Two of the most prominent examples of flexible circuit usage is in modern portable electronics, devices, hard disk drives and desktop printers.

Flexible circuits are also used extensively in other applications and industries including:

Communications

Consumer Electronics

Automotive

Medical

Industrial

Aerospace

Military

Transportation

In Automotive, Transportation they are extensively used due to their improved resistance to vibrations and movement.

Flex PCB Capacity

Material type:

PI, PET, PEN, FR-4.

Surface finishing: Lead-free, ENIG Gold, OSP, Immersion silver, Immersion Tin.

HASL.

Polyimide, PET.

Max layer: Flex board: 1-6layer, Flex-Rigid Board: 2-8 Layers.

Min.

hole size:

punching hole: 0.50mm

Drill Hole: 0.20mm

Max Panel size: 250MM*400MM.

Min.

Board thickness:

Copper Thickness: 1/3OZ-2OZ

Min slot: 24mil*35mil(0.6X0.9MM)


Size Tolerance

Conductor width: +/-10%

Hole size: +/-0.05mm.

Single: 0.1mm

2layers: 0.13mm

4layers: 0.30mm

6layers: 0.50mm


Company Contact:


  • Phone: 86-0755-27347385

  • Address: Longwangmiao 88 Industrial Park, Block B, 2nd Floor,Fuyong Town, Bao'an District, Shenzhen , Guangdong , China

  • Email: Email


Published date: March 27, 2018

  • Business Description: MKTPCB is a professional and reliable one-stop PCB solution company.

    We provide clients with seamless prototype service, high-precision single, double-side multilayer printed circuit boards (up to 20 layer), LED Aluminum PCB, HDI PCB, High-TG PCB, Thick copper PCB, Flexible, PCB design, material sourcing, PCB assembly, end-to-end logistics and after-sales service

    Since the establishment of the company, we have built very good relationship with many different customers.

    Following the goal of our Company : Quality and Customers come help us get good reputation.

    The production capacity of PCB can achieve 1000, 000 square meters per year.

    The sales performance for PCBA is more than $120, 000.
