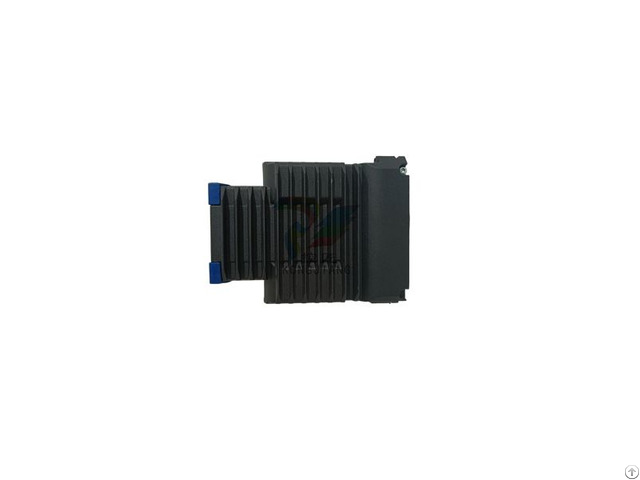

FOXBORO FCP270 P0917YZ Field Control Processor DESCRIPTION The Field Control Processor 270 (FCP270) is a distributed, optionally fault-tolerant, field-mounted controller module.

The FCP270 performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules.

It also performs data acquisition and alarm detection and notification.

The FCP270 connects to the Foxboro Evo control network via standard fiber optic 100 Mbps Ethernet.

FEATURES  Performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules (FBMs)  Performs data acquisition and alarm detection and notification  Supports up to 32 200 Series FBMs - referring to both Compact or standard types  Supports up to 128 200 Series FBMs (Compact or standard) with a Fieldbus Expansion Module 100 (FEM100)  Supports up to 64 of the 100 Series FBMs  No Fieldbus Communication Module is required  Connects to the Foxboro Evo control network via standard fiber optic 100 Mbps Ethernet  Uses a rugged, die cast aluminum housing for mounting in a non-vented field enclosure  Can operate in Class G3 harsh environments  Is CE certified for field mounting in enclosures  Supports both the 2 Mbps or 268 Kbps HDLC fieldbuses simultaneously with the FBI200 allowing connections to both 200 Series and 100 Series FBMs (affects the total number of each type of FBM supported)  Supports the extension of the 268 Kbps HDLC fieldbus with the FBI100 to the 100 Series FBMs  Offers unique, patented, fault-tolerant operation using two control modules to greatly improve reliability relative to other process controllers  Uses versatile control algorithms and a wide variety of FBMs to provide control capabilities for a broad range of process applications  Supports time synchronization using optional external time from GPS satellites  Offers on-line image update of a fault-tolerant FCP270 without shutting down the process  Uses soft letterbugs configurable via the I/A Series® system Letterbug Configurator running on a Pocket PC  Supports self-hosting mode with I/A Series software v8.4-v8.8 or Foxboro Evo™ Control Core Services v9.0 or later.

Main Functions Field Control: The FCP270 P0917YZ is capable of real-time monitoring and control of parameters and equipment related to industrial processes, such as temperature, pressure, flow, valves, motors, etc., to ensure the efficiency and stability of the production process.

Data Acquisition and Analysis: The processor is capable of acquiring data generated by field devices and analysing it in real time, which helps operators understand system performance, troubleshooting and improving productivity.

Equipment Monitoring and Maintenance: By monitoring connected equipment and performing automated maintenance tasks, the FCP270 P0917YZ reduces equipment failure rates and increases the reliability of production facilities.

Communication and Network Integration: The FCP270 P0917YZ supports a wide range of communication protocols, enabling seamless integration with other control devices, sensors and data acquisition systems to form a complete automation solution.
