Fsm 10h 01 Pre Calibrated Combustible Gas Sensor Module - China

price: check with company for price

Fsm 10h 01 Pre Calibrated Combustible Gas Sensor Module

Products Photos Catalog Fsm 10h Pre Calibrated Photos Catalog

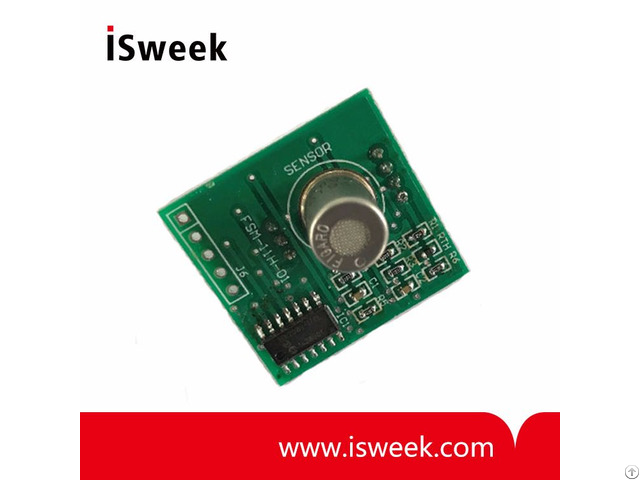

FSM-10H-01 Pre-calibrated Module for LPG Gas

FSM-10H-01 is Pre-calibrated Module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability.

The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short.

The module can operate at wide temperature from -10~70°C.

/

Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.

/

FSM-10H-01 Combustible Gas Sensor Module Features

• PWM, USART digital output proportional to gas concentration

• Maintain Free

• Compact size, low cost

• Meets RoHS requirement

/

FSM-10H-01 Combustible Gas Sensor Module Applications

• Detect flammable gas leakage

• Flammable gas leakage Detector

• Industrial detector

/

FSM-10H-01 Combustible Gas Sensor Module Specification

• Gas sensor​: TGS2610-D00(Semiconductor )​ • Detection range​: ​0 ~ 4, 000ppm H2 • Error​: ± 300ppm​

• Response time (T90)​: ≤30S​

• Operation temperature: -10°C ~+70°C ​• Operation humidity​: 20~95%RH(No condensing)​

• Input voltage (VIN)​: 5.0±0.2V DC​

• Power consumption​: ≤1.5W​


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: June 12, 2018

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
