Fsm Bp 01 Pre Calibrated Combustible Gas Sensor Module - China

price: check with company for price

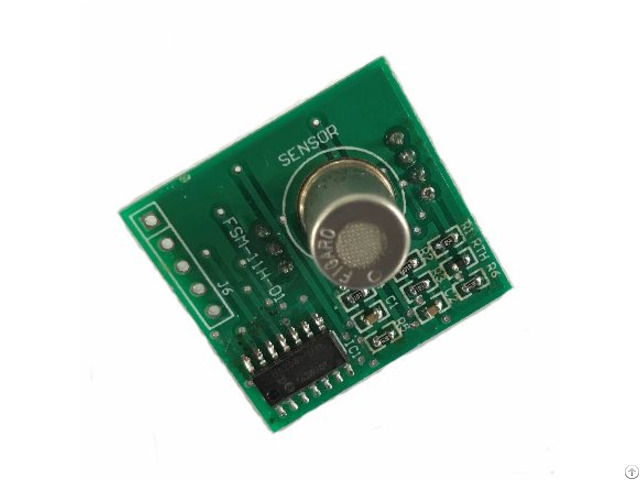

Fsm Bp 01 Pre Calibrated Combustible Gas Sensor Module

Products Photos Catalog Fsm Pre Calibrated Photos Catalog

FSM-BP-01Combustible gas sensor Module Features:

* PWM, USART digital output proportional to gas concentration

* Maintain Free

* Compact size, low cost

* Meets RoHS requirement FSM-BP-01Combustible Gas sensor Module Applications:

* Detect flammable gas leakage

* Flammable gas leakage Detector

* Industrial detector FSM-BP-01 is pre-calibrated module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability.

The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short.

The module can operate at wide temperature from -10~70°C.

Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.

FSM-BP-01Combustible Gas Sensor Module Output characters:

The module outputs PWM and USART signal which is proportional to LPG gas

concentration 1 - PWM output(Frequency is 2KHz), Vo=V*DUTY2( Vo is output voltage, V is input voltage, DUTY is duty cycle) 2 - USART output

The module output data every 100ms, the data format: FSM-BP-01Combustible Gas Sensor Module Specification:

Product name: Combustible gas sensor module

Model No: FSM-BP-01

Gas sensor: TGS2610-D00(Semiconductor )

Detection range: 0 ~ 4, 000ppm H2 (also can detect methane, iso-butane, and propane)

Error: ±300ppm

Output voltage (Vconc): PWM(2KHz)


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email
