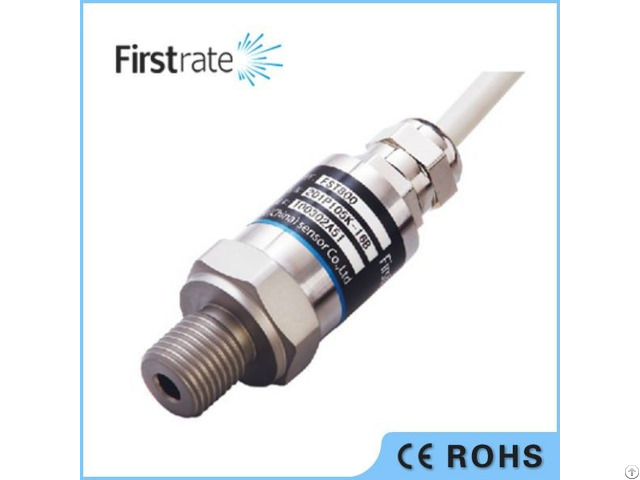

Fst800 201 Mv Signal Output Universal Industrial Pressure Sensor - China

Product Introduction

FST800-201 universal industrial pressure sensor is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm.

It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment.

Its pressure chamber is made of 174PH stainless steel in an integrated way without welding seams or Orings and free of leakage troubles.

The sensor adopts the advanced digital Compensated Temperature and is featured with the strong interference resistance, wide working temperature scope and longterm stability, etc.

The series products provide several optional pressure connections and electric connections for customers.

Product Features

■ Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles

■ Advanced digital temperature compensation and wide working temperature scope

■ High sensibility, high accuracy, high frequency response and longterm stability

■ Excellent resistance against impact, overload, shock and erosion

Applicable Scope

■ Industrial process testing and control

■ Automatic testing system

■ Hydraulic and pneumatic systems

■ Pump station and water treatment system

■ Industrial machinery manufacture Standard Range

Pressure Type gauge pressure and sealed pressure

Pressure Range(bar) 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600

Pressure Range(psi) 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K

Technical Index

Signal Output 10mV/V ~ 15mV/V

Signal Line Specification 4wire

Supply Voltage 5~15VDC( recomend10VDC)

Accuracy ±0.05%FS ±0.1%FS ±0.3%FS ±0.5%FS

Zero Drift ±0.02%FS/°C

Thermal Sensitivity Shift ±0.02%FS/°C

Longterm Stability (1 Year) ±0.1%FS

Frequency Response (-3dB) 3.2kHz

Compensated Temperature -20~+85°C

Working Temperature -40~+85°C

Storage Temperature -40~+125°C

Overload Pressure 300% FS

Burst Pressure 500% FS

Mechanical Vibration ±20g

Impact (11ms) 100g

Environmental Protection IP65

Media Compatibility 17-4PH

EMC EN61000-6

Certificates CE RoHS
