Fuji Nxt Iii Pick And Place Machine - China

price: contact company for price

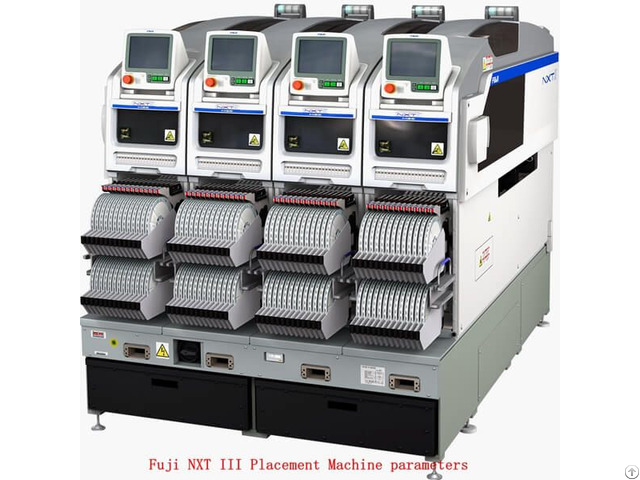

Fuji NXT III Pick and Place Machine

Patch speed: 22, 500CPH

H12S: 0402 ~ 7.5x7.5mm

weight: 1, 350kg

Product description: Fuji NXT III Pick and Place Machine INQUIRY

fuji nxt III pick and place machine Products Description: Fuji NXT-M3 Mounter Specifications:

machine type:

NXT-M3

PCB size:

Minimum: 48mmx48mm

Maximum: 510mmx534mm (Single handling track)

Patch speed:

H12HS: 22, 500; H08: 10, 500; H04: 6, 500; H01: 4, 200

Patch accuracy:

H12S / H08 / H04: 0.05mm (3sigma) cpk≥1.00

Patch range:

H12S: 0402 ~ 7.5x7.5mm high: MAX: 3.0mm

H08: 0402 ~ 12x12mm high: MAX: 6.5mm

H04: 1608 ~ 38x38mm high: MAX: 13mm

H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm

G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm Carrying rack:

MAX: 20 kinds / module (8mm tape conversion)

using electric:

3P / 200V / 10KVA

Air flow:

0.5 MPa (5 kgf / cm2), 10 NI / min.

Dimensions:

2M II Base: 740 (L) x 1934 (W)

4M II Base: 1390 (L) x 1934 (W)

H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)

Machine weight:

1, 350kg By loading the newly developed H24G head on the NXT III, 008004″ (0.25 x 0.125 mm) components can be supported without any change to the specifications of the machine (speed: 35, 000 cph, accuracy: ±25 μm).

The Intelligent Part Sensor (IPS), which checks the orientation of parts on the nozzle and ensures that the part does not remain on the nozzle after placement, is standard on the H24G placement head.

As part sizes get increasingly smaller and more delicate, lower impact forces during placement are required.

The 008004″ (0.25 x 0.125 mm) part nozzles developed for the H24G head achieve an impact force of no greater than 0.5 N without any reduction in operation speed.

Orders for the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles will start to be taken from January 2015 - Fuji is planning to demonstrate the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles Please drop by the booth to see some 008004″ (0.25 x 0.125 mm) components being placed at high speed.

Keywords: China reflow oven, Pick and place machine factory, China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer, pick and place machine supplier.

Flason Electronic Co., ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp: 008613691605420, Skype: flasonsmt, Email: sales@flason-smt.

com FAQ 1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ? 1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !) A.

Consult us about this product on line or by e-mail.

B.

Negotiate and confirm the final price, shipping, payment methods and other terms.

C.

Send you the proforma invoice and confirm your order.

D.

Make the payment according to the method put on proforma invoice.

E.

We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.

Send your order by air or by sea.

5)Why choose us ? A.

Gold supplier on Alibaba ! B.

Trade assurance to US$54, 000 ! C.

Best price & Best shipping & Best service ! Contact information PREVIOUS:Hitachi GXH-1S Pick and Place Machine NEXT:Panasonic DT401-F Pick and Place Machine
