G Series Combustible Gas Detectors With Analoge Output - China

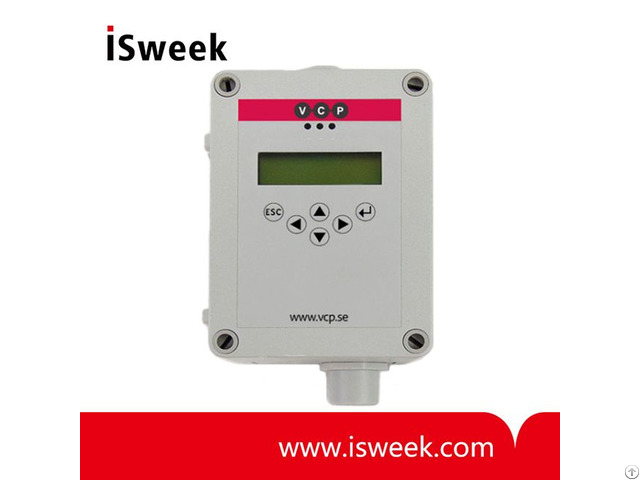

Combustible gas detector G-series for wall mounting

/

G-series Combustible Gas Detectors Gases

• Methane, CH4

• Liquid Petroleum Gas, LPG

• Hydrogen, H2

• Propane, C3H8

• Ethylene, C2H4

• Ethyl alcohol, C2H5OH

• Methanol, CH3OH

• Acetone, C3H6O

• Isopropyl alcohol, C3H8O

• Iso/n-Butane, C4H10

• Toluene, C7H8

• Petrol Vapors

On request: other combustible gas detectors

/

G-series Combustible Gas Detectors Features

• Pellistor (Catalytic Bead) sensor

• Power supply 24 Vdc for output 4-20 mA

• Power supply 24 Vac for output 2-10 Vdc

• Measuring ranges: see ordering on page

• IP65 enclosure with quick locking screws

• Digital measurement value processing incl.

temperature compensation

• Internal function control with integrated hardware watchdog

• Data / measured values in micro controller of sensor unit, therefore simple exchange uncalibrated <> calibrated

• High accuracy, selectivity and reliability

• Low zero point drift

• Hardware & software according to SIL2 compliant development process

• Easy maintenance and calibration by exchange of the sensor unit or by comfortable on-site calibration

/

G-series Combustible Gas Detectors Options

• LCD display

• LCD display for values & operation, 2 x open-collector for horn & warning lamp.

• Duct mounting set available for sensing combustible gas in ventilation ducts.

/

G-series Combustible Gas Detectors Technical data

• Sensor element: Pellistor (Catalytic Bead) • Accuracy: +/-1% • Resolution: 0.2% • Response time t90: <15 sec.

• Zero Point variation: 0.5% • Long-term zero-point drift: <0.5% LEL • Long-term sensivity drift: <1% • Temp.

range: +20 °C to +50 °C • Humidity range: 5 to 95% RH non-condensation
