Gas Insulated Switchgear - China

price: 45000.00 Dollar US$

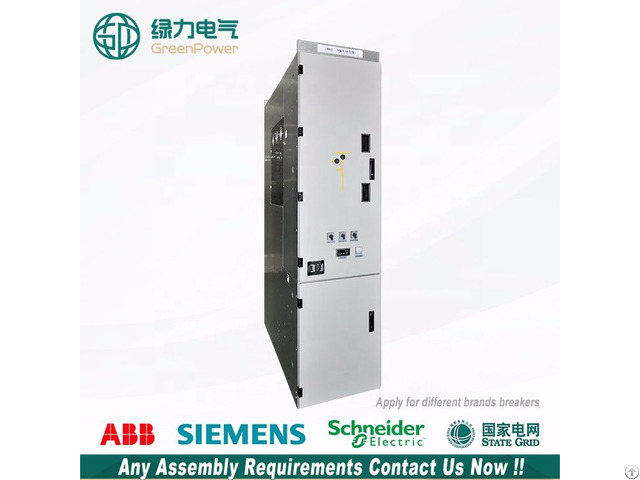

Gas Insulated Switchgear

Products Photos Catalog Gas Insulated Photos Catalog

33KV 36kV 38KV 40.5KV SF6/SF6 FREE High / Medium Voltage CGIS Gas Insulated Switchgear Environmentally friendly products

* 12kV 100%N2 C-GIS & RMU

* 24kV 90%N2+10%SF6 C-GIS

* 40.5kV 50%N2+50%SF6 C-GIS

* 40.5kV 100%SF6 C-GIS

* 40.5kV 100%N2 C-GIS Gas system:

-Normal inflation pressure is close to zero gauge pressure (gauge pressure 0.02MPa)

-Vacuum Circuit Breaker, -Three position disconnecting switch

-Enough height for cable entry.

Structural features:

The voltage can reach 40.5kV, the current 1250/2500A, and the breaking can reach 31.5KA/4s

GPRC2B power supply continuity level Cabinet size:

1250A: 600×1600×2400mm 2500A: 800×1600×2400mm

SF6 gas insulation, vacuum breaking

Double gas box structure: busbar and circuit breaker are located in two gas boxes, with independent gas density meter

All high-pressure circuits are gas-sealed

German DIN standard inner cone in-line cable terminal

Cable height: ≥900mm

In case of a situation, there is no need to move the cabinets on both sides, the middle cabinet can be removed and replaced.


Company Contact:


  • Phone: +8618989782765

  • Address: #302, THIRD FLOOR, NO. 428 WENZHOU AVENUE, WENZHOU, ZHEJIANG, 325011, CHINA., Wenzhou , Zhejiang , China

  • Email: Email


Published date: June 27, 2022

  • Business Description: Low voltage Switchgears, Medium voltage switchgears, Vacuum circuit breaker, SF6 circuit breakers, Air insulated switchgears, Gas insulated switchgear(CGIS), SF6 insulated switchgears, 40.5kV switchgear products, 24kV switchgear products, 10kV switchgear products, Low voltage withdrawable switchgears.

    All products with type tested and most products Intertek type test with ASTA certificate.

    please contact us now.
