General Purpose Relay Bly - Taiwan

price: contact company for price

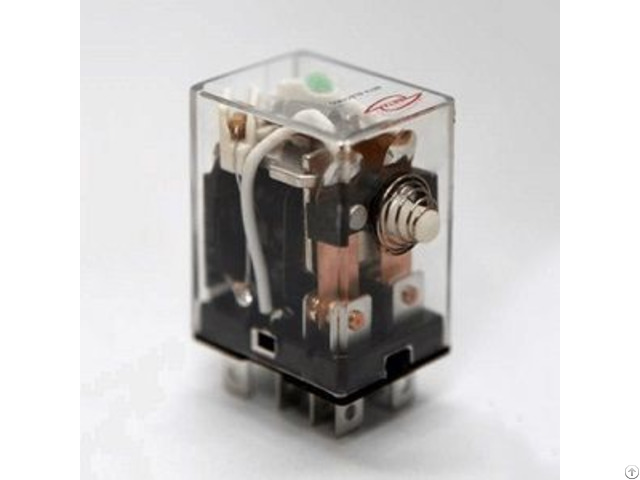

General Purpose Relay Bly

Products Photos Catalog Relay Bly Photos Catalog

HIGHLIGHT:

one of the most popular general purpose relays: 10A relay (relé de propósito general, relé industrial, relé miniatura)

can replace the below relays: Omron relay: LY Zelio relay: RPM Magnecraft relay: 781/782/783/784 Finder relay: 56 Idec relay: RH LED indicator is available in this model

wide choice of coil volts: 6V, 12V, 24V, 48V, 110V, 120V, 220V, 230V, 240V

relay socket PTF-05, PTF-08A, PTF-14A for plug-in style relay

can be pcb relay (pcb mounted pins if choosing P type instead of S type)

UL listed: E115915 CHOICE: contact load:

* 10 amp 28VDC, 10 amp 240VAC

configuration (changeover): * 1C (5 pin/ SPDT)

* 2C (8 pin/ DPDT)

* 3C (11 pin/ 3PDT)

* 4C (14 pin/ 4PDT) terminal types: PCB mounted terminlal or plug-in style cover choice; plain cover (clear cover)

functions: LED indicator

volts range:

DC relay: 6V, 12V, 24V, 48V, 110V

AC relay: 110V, 120V, 220V, 230V, 240V

relay socket (screw terminal): * PTF-05 for 1C (5 pin relay) * PTF-08A for 2C (8 pin relay) * PTF-11A for 3C (11 pin relay) * PTF-14A for 4C (14 pin relay)


Company Contact:


  • Phone: 886-2-82269400

  • Address: 4F-1, No.2, Jian 8th Rd., Zhonghe Dist., , New Taipei City, Taiwan , Taiwan

  • Email: Email


Published date: July 22, 2019

  • Business Description: BETA has grown rapidly in the last 30 years and become an expert at electric components manufacturing.

    BETA believes that top quality and management with excellent service can be everlasting.
