General Purpose Relays 12vdc G4a 1a E Dc12 - India
price: contact company for price

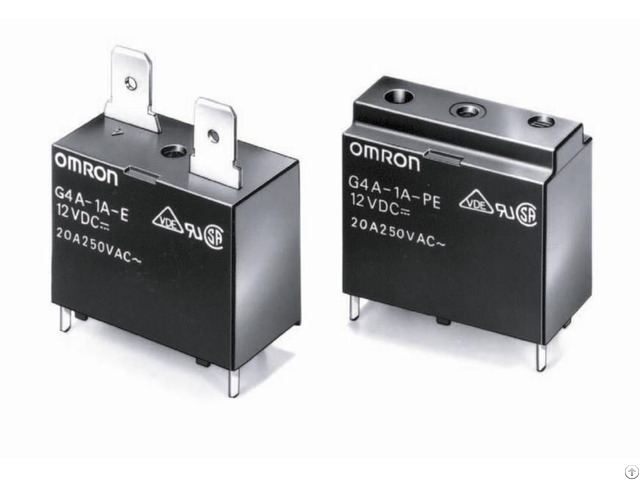

General Purpose Relays SPST-NO 12VDC PCB & QC : - G4A-1A-E-DC12
FEATURES: -
• Ideal for motor switching.
• Miniature, relay with high switching power and long
endurance.
• Creepage distance conforms to UL and CSA standards.
• Highly noise-resistive insulation materials employed.
• Standard model available with flux protection construction.
• RoHS Compliant
APPLICATION: -
Industrial;
Power Management;
Automation & Process Control;
Consumer Electronics
DESCRIPTION: -
Product Category: General Purpose Relays
Manufacturer: Omron
RoHS: RoHS Compliant Details
Coil Voltage: 12 VDC
Contact Form: SPST (1 Form A)
Contact Current Rating: 20 A
Mounting Style: Through Hole
Coil Resistance: 160 Ohms
Coil Current: 75 mA
Brand: Omron Electronics
Height: 23.5 mm
Length: 30.5 mm
Packaging: Bulk
Power Consumption: 900 mW
Qualification: Commercial
Series: G4A
Factory Pack Quantity: 50
Width: 16 mm
Part # Aliases: 659593 G4A-1A-E-DC12-BY-OMZG4A1A EDC12NC G4A-6000M G4A1AE12DC G4A1AEDC12BYOMZ G4A6000M
