General Purpose Relays 12vdc G5nb 1a E Dc12 - India

price: 1.00 Dollar US$

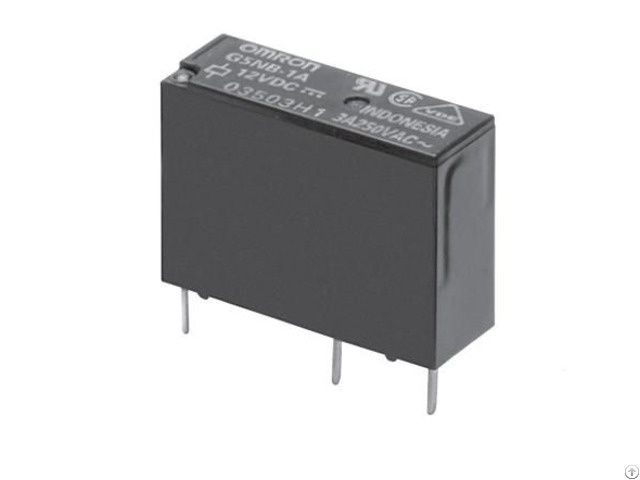

General Purpose Relays 12vdc G5nb 1a E Dc12

Products Photos Catalog Relays 12vdc G5nb Dc12 Photos Catalog

General Purpose Relays SPST-NO Flux-Tight 12VDC High-Capacity : - G5NB-1A-E-DC12

FEATURES: -

• Max size 20.5L x 7.2 W x 15.3 W mm.

• Standard models switch up to 3 A High-capacity models switch up to 5 A (AC loads only).

• Low power consumption (200 mW).

• Semi-sealed and sealed types available.

• UL recognized / CSA certified.

VDE Approved.

• RoHS Compliant.

APPLICATION: -

Water Heaters, Refrigerators, Air conditioners, And small electric appliances

DESCRIPTION: -

Product Category: General Purpose Relays

Manufacturer: Omron

RoHS: RoHS Compliant Details

Coil Voltage: 12 VDC

Contact Form: SPST (1 Form A)

Mounting Style: Through Hole

Coil Type: Non-Latching

Coil Resistance: 720 Ohms

Coil Current: 16.7 mA

Brand: Omron Electronics

Height: 15.3 mm

Length: 20.5 mm

Packaging: Bulk

Power Consumption: 200 mW

Series: G5NB

Factory Pack Quantity: 100

Width: 7.2 mm

Part # Aliases: 12DC 666403 G5NB-1A-E G5NB-1A-E-DC12-BY-OMZ G5NB-1A-EDC12 G5NB1AE12DC G5NB1AEDC12A G5NB1AEDC12BYOMZ G5NB1AEDC12NA
