General Purpose Relays G2rl 1a E Ha Dc12 - India

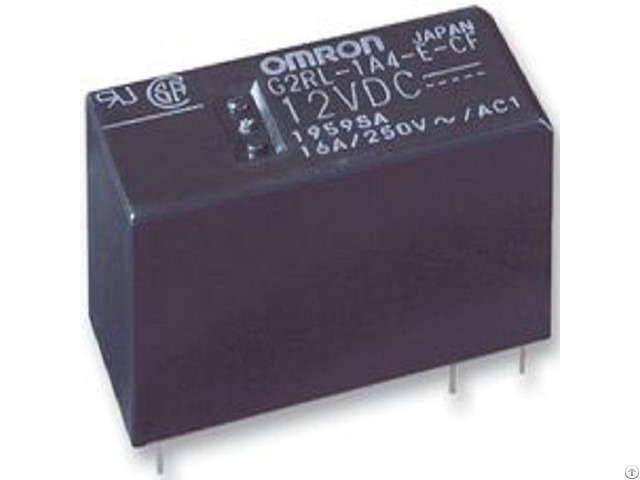

General Purpose Relays Power PCB Relay : - G2RL-1A-E-HA DC12

FEATURES: -

• A wide variety of single pole, double pole, high-capacity (16 A)

type and high-sensitivity type (250 mW) Relays are available.

• Low profile; 15.7 mm max.

In height.

• Conforms to VDE (EN61810-1), UL508 and CSA22.2.

• IEC/EN 60335-1 conformed.

(-HA Model)

• Satisfies ambient operating temperature requirement of 85°C

and 105°C (-CV Model).

• Clearance and creepage distance: 8 mm / 8 mm min.

• Coil insulation system: Class F (UL1446).

• G2RL-1A-E-ASI: TV3 Rating models available.

APPLICATION: -

• Home appliances

• OA equipments

• Industrial machinery

DESCRIPTION: -

Product Category: General Purpose Relays

Manufacturer: Omron

RoHS: RoHS Compliant Details

Coil Voltage: 12 VDC

Contact Form: SPST (1 Form A)

Contact Current Rating: 16 A

Mounting Style: Through Hole

Switching Voltage: 440 VAC, 300 VDC

Coil Resistance: 360 Ohms

Coil Current: 33.3 mA

Contact Material: Silver Alloy (Ag)

Brand: Omron Electronics

Series: G2RL-1

Factory Pack Quantity: 100

Part # Aliases: 680554 G2RL1138C G2RL1AEHA12DC G2RL1AEHADC12BYOMB
