Germany P F Inductive Sensor Nbb15 30gm50 Wo - Germany
price: 150.00 Dollar US$

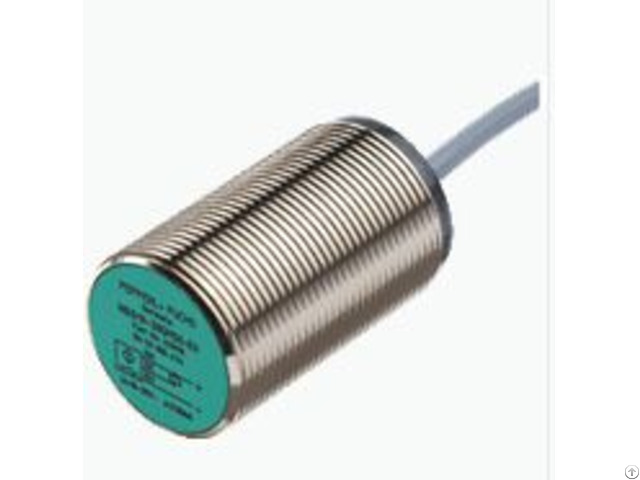

Inductive sensor NBB15-30GM50-WO
Basic series
15 mm flush
2-wire AC
General specifications
Switching element function AC NC
Rated operating distance 15 mm
Installation quasi flush
Output polarity AC
Assured operating distance 0 .
12.15 mm
Actual operating distance 13.5 .
16.5 mm
Reduction factor rAl 0.33
Reduction factor rCu 0.28
Reduction factor r304 0.81
Nominal ratings
Operating voltage 20 .
253 V
Switching frequency 0 .
20 Hz
Hysteresis typ.
5 %
Reverse polarity protection reverse polarity tolerant
Voltage drop < 5 V (IL > 50 mA); < 8 V (IL < 50 mA)
Momentary current
(20 ms, 0.1 Hz) 0 .
1600 mA
Operating current 5 .
200 mA
Off-state current 0 .
1.7 mA
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
