Germany P F Read Head Wcs2b Ls221 - Germany

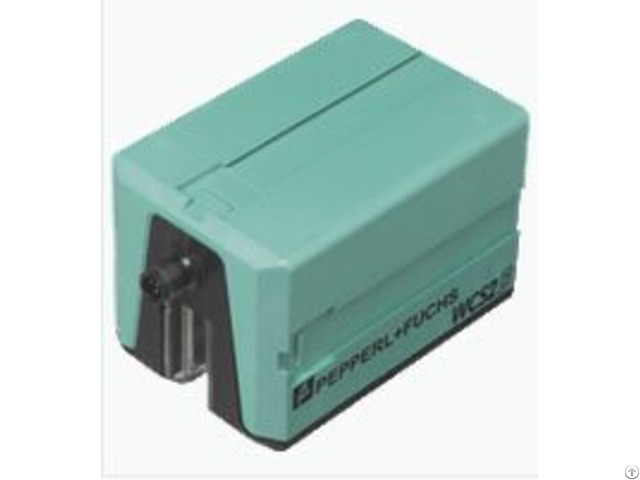

Read head WCS2B-LS221

RS 485 interface

Non-contact, absolute position encoder

Automatic detection of dirt accumulation

Product Description

Read head, RS-485 interface, with RS-485 termination resistor

General specifications

Passage speed ≤ 12.5 m/s

Measuring range max.

327 m

Free tolerances to code rail horizontal: 10 mm ( ± 5 mm )

vertical: 10 mm ( ± 5 mm )

Resolution ± 0.42 mm (1, 200 positions/m)

Functional safety related parameters

MTTFd 60 a

Mission Time (TM) 10 a

Diagnostic Coverage (DC) 0 %

Electrical specifications

Operating voltage 10 .

30 V DC

Power consumption 2 VA

Interface

Interface type RS 485 interface

Data output code binary code

Protocol 1, 2

Transfer rate 62.5 kBit/s

Termination with RS 485 termination

Standard conformity

Emitted interference DIN EN 61000-6-4

Noise immunity DIN EN 61000-6-2

Shock resistance DIN EN 60068-2-27, half sine 30 g, 18 ms

Vibration resistance DIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles

Approvals and certificates

CSA approval cCSAus Certified, General Purpose

Class 2 power source

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Operating temperature 0 .

60 °C (32 .

140 °F)

Storage temperature -40 .

85 °C (-40 .

185 °F)

Relative humidity 90 %, noncondensing

Mechanical specifications

Connection type 5-pin, M12 x 1 connector

Degree of protection IP54

Material

Housing ABS, Polycarbonate, Polyamide (PA)
