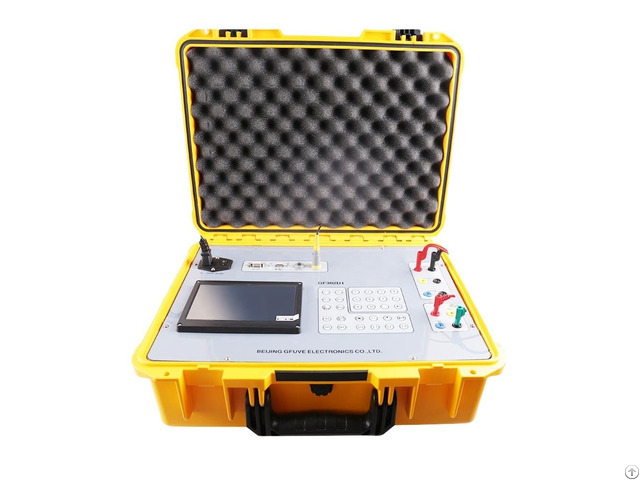

Gfuve Three Phase Portable Energy Meter Test Equipment Gf302d1 120a 500v Kit System - China
price: 35566.00 Dollar US$
The GF302D1 three phase portable energy meter test equipment consists of an integrated three phase current source(up to 500V/120A or 500V/20A) and built-in three-phase electronic reference standard of accuracy class 0.05%.
Characteristic features of the GF302D1 are its wide measuring range, high accuracy and high tolerance to unwanted external influences.
The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 7" touch LCD-display.
Voltage & current harmonics output from 2 to 63 times.
This model portable meter test equipment can be programmable by PC, automatic generation of energy meter error test report.
Specification
Warranty: 3 years
Power: Electronic
Other attributes
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF302D1
Accuracy: 0.05%, 0.1%
Power supply: One Phase AC 100-265V, frequency 50/60Hz.
AC voltage Output range(U1, U2, U3): 0-500V; 0-380V; 0-300V
AC Current Output range(I1, I2, I3): 0-6A; 0-12A; 0-20A; 0-50A; 0-120A;
Voltage adjustment range: (0-120)%RG
Active power output stability: <0.01%RG/120s
Reactive power output stability: <0.02%RG/120s
Active power measuring accuracy: 0.05%RG
Reactive power measuring accuracy: 0.1%RG
Dimension: 495x390x195 mm
Weight: 12.8 kg
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
Published date: January 31, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
