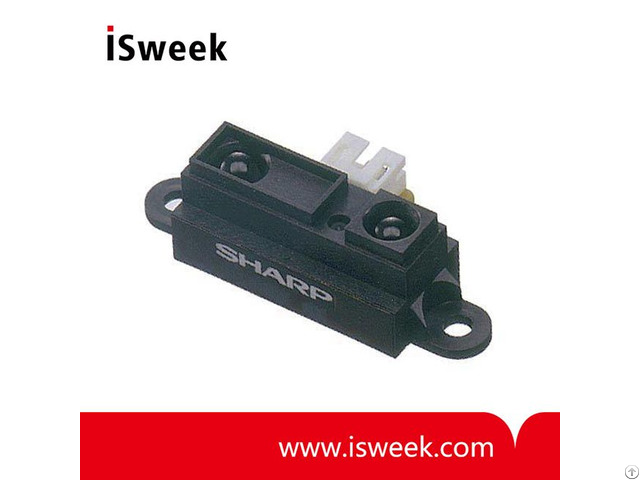

Gp2y0a41sk0f Distance Measuring Sensor Unit - China

price: contact company for price

GP2Y0A41SK0F

Distance Measuring Sensor Unit

Measuring distance : 4 to 30 cm

Analog output type

/

GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Description

/

GP2Y0A41SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector), IR-LED (infrared emitting diode) and signal processing circuit.

/

The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.

/

This device outputs the voltage corresponding to the detection distance.

So this sensor can also be used as a proximity sensor.

/

GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Features

1 - Distance measuring sensor is united with PSD, infrared LED and signal processing circuit

2 - Short measuring cycle (16.5ms)

3 - Distance measuring range : 4 to 30 cm

4 - Package size (29.5 × 13.0 × 13.5mm)

5 - Analog output type

/

GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Agency approvals/Compliance

1 - Compliant with RoHS directive (2002/95/EC)

/

GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Applications

1 - Cleaning robot

2 - Personal robot

3 - Sanitary
