Grewin 220vac 230vac Custom Made Pcb Toroidal Transformer For Power Supply - China

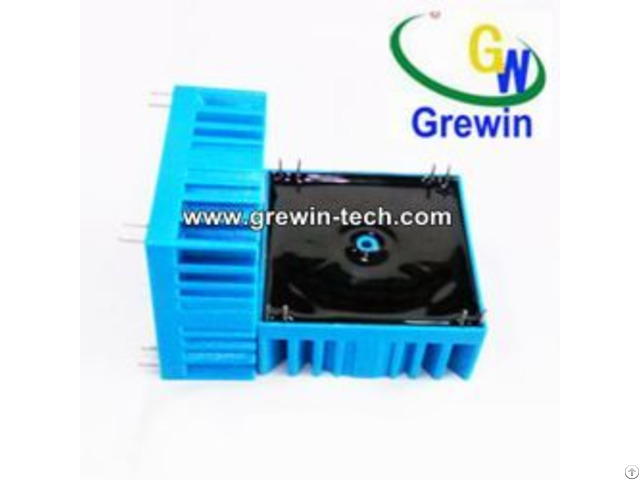

We have passed ISO9001: 2015, CE, CB, SGS approval and IEC report Grewin 220VAC-230VAC Custom-Made PCB Toroidal Transformer for Power Supply GW-I Series: High Quality Encapsulated Toroidal Transformers with Pins

Grewin 220VAC-230VAC Custom-Made PCB Toroidal Transformer for Power Supply Grewin 220VAC-230VAC Custom-Made PCB Toroidal Transformer for Power Supply Remark:

A.

D refers to the volume of a corresponding transformer, which will be replaced with a digit.

For the transformer with a single winding, the corresponding max.

volume can be reached; for the transformer with two or more windings, the corresponding volume will be reduced properly.

B.

Being a tendency of future pin transformer, it is applide with our best self-made toroidal core (Po≤0.9W/Kg) in the result of High Efficiency, Low Power Loss and Low Temperature-rise to be Green, Energy-saving & Environment-friendly.

C.

Attributed to our Patent Technology, excluding the pins distribution mentioned above, the pins distribution can be freely adjusted by following customer's advice.

D.

Nice Appearance, Small Size, Moisture Proof & Mould Prevention.

E.

Pins Quantity can be reduced or increased based on your requirement.

Grewin 220VAC-230VAC Custom-Made PCB Toroidal Transformer for Power Supply Minature Transformers:

The dimension of the Control Transformer Usage &Toroidal Coil Structure step-up auto-transformator 380V to 200V

The Partial List of GW-B Series Toroidal Transformers with Cable and Mounting Holes: 1 - Installation: Horizontal (non-conventional-type base plate), sunk, side type, and bridge.

2 - Application: Especially low-hum and low-dispersing construction Low-level of induction High-grade design casing possible Statically shield winding and magnetical shield winding optional

Be used widely such as audio equipment, communication, new energy areas, Electrical control, Cable TV network etc.

3 - Equipment: Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment as below: .

Automatic Winding Machine

.

Semi-automatic Winding Machine

.

Toroidal Winding Machine

.

Insert Lamination Machine

.

Wave Soldering Machine

.

Plastic Termal Ultraviolet Machine

.

Domino Ink Jet Printing Machine Transformer Multitester for High & Low Frequency Layer Insulation Withstand Voltage Tester 4 - Warning Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

5 - Certificate We have abtained CE CQC RoHs UL ISO9001: 2015, SGS and IEC approval.

We guarantee quality is the first.

Test process:

1).

No-load test (included no-load voltage, no load current and no load loss)

2).

IInductive voltage test 3).

Load test (load voltage and temperature rise

4).

Temperature rise test .

5).

Insulated resistance 6).

Hi-pot test 7).

Leakage indutance test 8).

DC resistance test 9).

Surface inspection.

Application: 1).

audio equipment 2).

electric control

3).

computer

4).

instrument

5).

telecommunications

6).

high-end and middle-end vedio etc

6 - Note The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design.

And the specification is for reference, if has the change further, please take the material object as the standard.

7 - GREWIN'S Dimension : External diameter: 55mm-300mm, height : 13mm-130mm, Efficiency: 75-98% we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage, power.

etc.

)

About us: 1 - Tianjin Grewin Technology Co., ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

2 - Flow chart of trading activities: NO Step Days need 1 Request for quotation 1 day 2 Making quotations 1 day 3 Offer and counter offer 3 days 4 Sending and receiving samples 3-10 days 5 Sample confirmation 3 days 6 Placing a firm order 1 day 7 Paying and receiving the down payment 1-4 day 8 Factory production & Quality inspection 15-20 days 9 Paying and receiving the balance 4 days 10 Delivery of goods 1 days Contact Information: Amy Tianjin Grewin Technology Co., Ltd. Tel: 86-22-84943756

Company Contact:

• Posted By: TianJin Grewin technology Co.,Ltd

• Phone: +862284943756

• Address: RM1013 2#Building MeiNian Plaza No.16 DongTing Road HeXi Distr, 300222 Tianjin China., Tianjin , TianJin , China

• Email:

• Website: https://www.grewin-tech.com

• Business Description: Tianjin Grewin Technology Co.

  Ltd. In Tianjin City which is very close to XinGang Port and BinHai International Airport, which provide timely and convenient access to transportations for customers.

  Its a professional leading and a main exporter of a wide variety of electronics components in north of China.

  All of our products stand for top quality in this industry and are enjoying very high honor.

  We have abtained ISO90001, CE, SGS approval and IEC test report.

  Our core business are including following:

  1 - Toroidal Transformers

  2 - Current Transformers

  3 - EI laminated Transformers

  4 - Ferrite Core Transformers

  5 - Monitoring Devices

  6 - Power Testing

  7 - Chokes Coil

  All staff in our company would like to appreciate for your attention to our products.

  Welcome to give us your valuable suggestions about products and services.

  You can be our sole agent in your country and benefit from more preferable prices.

  OEM orders are welcome.
