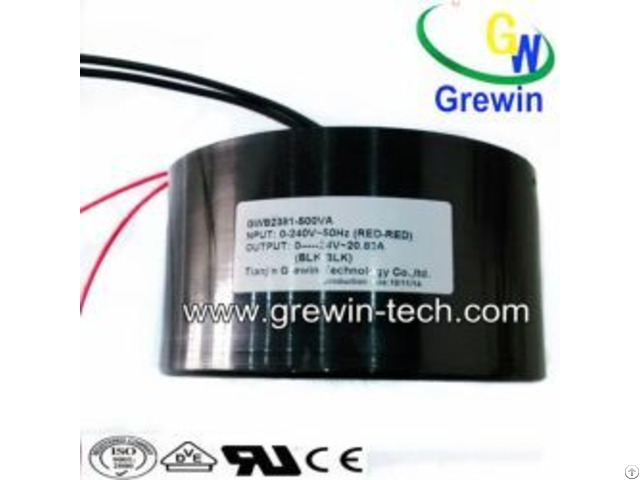

Grewin Toroidal Waterproof Transformer With Iec - China

Name : Grewin Toroidal Waterproof Transformer with IEC 1 - We have abtained IEC, VDE, UL, CE, CB, ISO9000 approval .

we guarantee quality is the first.

Grewin Toroidal Waterproof Transformer with IEC Grewin Toroidal Waterproof Transformer with IEC 2 - waterproof Transformer's Dimension Sheet: (Note: Rated 105VA-1000VA for devices 105VA-1000VA watts or less, GWET-105 means 105VA size ) Grewin Toroidal Waterproof Transformer with IEC

Grewin Toroidal Waterproof Transformer with IEC 3 - Waterproof outdoor toroidal Transformer's Spcification: 1).

WORKING AND SAFETY PROTEETION Eiectrostatic Shield Magnetic Shield

√ TemperatureProtection OverCurrent Protection 2).

INSULATION

Insulation resistance test(type test): Pri.

~sec.

500V DC 100 MΩMIN.

HI-POT TEST(100% test): Pass ourdielectric strength test, without any breakdown Pri.

~sec.

AC 3.8kV for 5 seconds (leakage current 5mAMAX) 3).

TEMPERATURE RISE

Ta=25ºCTest by resistance method At rated load PRI.

& SEC.

WINDINGS'TEMPERATURE RISE 75ºCMAX.

4).

MAJOR MEASUREMENT FACILITIES: HI-POT TESTER: CJ2670

INSULATION-RESISTANCE METER: ZC-7

VOL TMETER: T19-V

DC-RESISTANCE METER: QJ44

AMPEREMETER: T19/1-A 5).

MAIN PARAMETERS:

Input Voltage: AC 220V 230v 110v (Define the voltage) Output voltage: AC 12V / 24V (Define the voltage)

Power range: 105VA-1KVA 6) Waterproof toroidal Transformer's materials: * Annular core: Cold rolling directional silicon steel * Insulation protection: Mylar

* Core Insulation: Polyester 7C

* Primary/Secondary Winding: Enamelled copper wire

* Terminal cannula: PVC canula

* Termial uderlay: Polyester 19C

* Temperature Protection: Thermal Switch

* Pri.

Insulation: Polyester 7C

* Insulation protection: Mylar

* Coating insulation: Polyester 5C

* Lead: UL WIRE

* Potted resin: Potted resin

* Body: PP+GFRP 7)Standard conditions and components: * Transformer should meet "Short-circuit-proof safety isolating transformer (inherently or non-inherently) IEC 61558-2-6: 09" * Thermal Switch 17AM 211 120°C Sensata Technologies or equivalent (UL E15962) * Thermal Fuse A7-5A-F 5A/138°C Aupo Electronics or equivalent (UL E140847) * Transformer is double insulated (Class II) with Insulation Class B 120°C * Insulation tests 500VDC 100M ohm min and 4kV for 5 seconds at 5mA max leakage current 4 - Application:

Grewin Toroidal Waterproof Transformer with IEC Garden light LED underwater lamp LED Ground light

Outdoor power Supply Humidifier Swimming pool Round Enapsulated Transformer with wire leads, power range: 25VA-6000VA Waterproof Encapsulated transformer Application: 1 - Garden light 2 - LED underwater lamp 3 - LED Ground light

4 - Outdoor power Supply

5 - Audio sound field

6 - Stage lighting 7 - Outdoor lighting 8 - Christmas Lights Advantages:

100% copper wire made

2 - Toroidal style

3 - plastic cover : ABS fire Material of withstand high temperatures 4 - Epoxy resin 4 - high performance insulation 5 - Anti-corrosion, waterproof performance 5 - Advantages: 100% copper wire made Toroidal style

plastic cover : ABS fire Material of withstand high temperatures Epoxy resin high performance insulation Anti-corrosion, waterproof performance Contact Information: Amy Tianjin Grewin Technology Co., Ltd.
