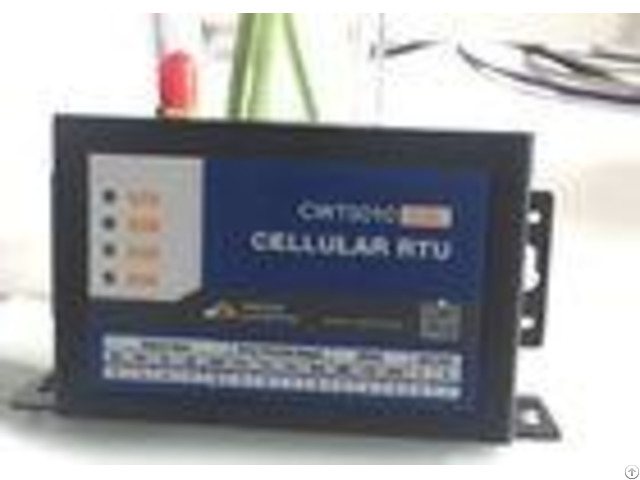

Gsm Gprs Wifi Wireless M2m Gateway Telecommunication Device Highly Integrated - China

GSM GPRS WiFi wireless m2m telecommunication device System Feature # Adopted highly integrated industrial 32-bit ARM MCU # Double watchdog to ensure stability # Support signal fileter # Support automatic network reconnection and data re-send # Automatically or manually update interior clock by sms or NTP or server # Configurable action schedule(second, minute, day, week, month) # Event-based linkage programming, e.g. alarm linkage output # Easy used GUI configure software for setting up to 100 parameters # Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost DI feature # Trigger dry contact(NO or NC) DO(T) feature # Relay drivable output(drive voltage=power supply voltage, Drive current500mA) # DO can be activated by remote or local schedule # Remember status when power lost DO(K) feature # Relay NO contact output(load: 2A / 125VAC, 220VDC) # Remote or local event activate DO on/off/pulse # Status memory function for power lost AI feature # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Convert signal to actual measure value, support adjustment # Configurable parameters for signal acquisition, alarm, data communication # Signal lost alarm SMS feature # Can add 10 administrator numbers for alarm and remote control # Sms alarm when any IO channel triggered or out of preset normal range # Customizable sms messages, like alarm, receove, report # Query any IO channels status or value via sms command # On/off/pulse output by sending sms # Can set interval to report IO channel's status or value by sms # Remote setting via sms commands # Can query SIM card balance, sms forward # Power lost and recover alarm by sending sms Wireless network communication # Optianal onboard GPRS, 3g, 4g, Wi-Fi module # TCP/IP connect at most 4 servers(support Static IP address or domain) # Events(e.g. alarm, timer) trigger upload data # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Support two-way data transparent transmission with RS485 or RS232

Company Contact:

• Posted By: CWT(HK) Co., Limited

• Phone: 86-755-26719943

• Address: 7/F, Block A, Building F1, TCL International E City, No.1001 Zhongshanyuan Road, Nanshan District, S, Shenzhen , Guangdong , China

• Email:

• Website: https://www.iotgatewaydevice.com

• Business Description: Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well.

  Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and in
