Guva T11gd L Uv Sensor - China

price: check with company for price

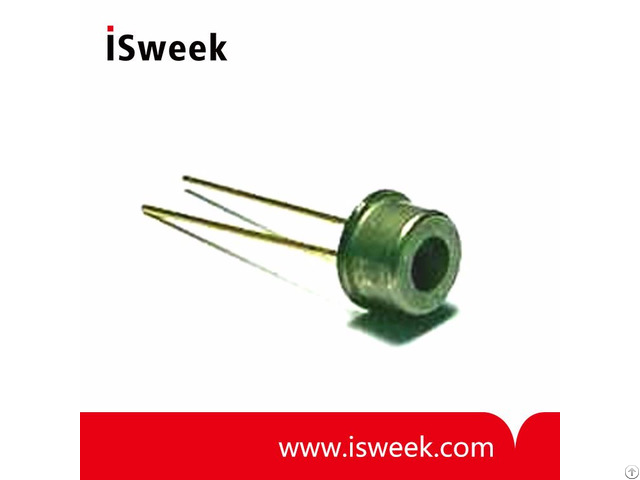

Guva T11gd L Uv Sensor

Products Photos Catalog Guva T11gd Sensor Photos Catalog

1 - UV Sensor GUVA-T11GD-L Features

Gallium Nitride Based Material

Schottky-type Photodiode

Photovoltaic Mode Operation

Good Visible Blindness

High Responsivity & Low Dark Current

/

2 - UV Sensor GUVA-T11GD-L Applications

Full UV Band Monitoring

UV-A Lamp Monitoring

/

3 - UV Sensor GUVA-T11GD-L Absolute Maximum Ratings

Storage Temperature: -40~90℃

Operating Temperature: -30~85℃

Reverse Voltage: 5V

Forward Current: 1mA

Optical Source Power Range: 0.01µ~100m W/cm2

Soldering Temperature: 260℃

/

4 - UV Sensor GUVA-T11GD-L Characteristics (at 25℃)

Dark Current: 20nA

Photo Current: 2.8~3.4µA, 3.1µA(Typ)

Temperature Coefficient: 0.05%/℃

Responsivity: 0.18A/W

Spectral Detection Range: 220~370nm

Active area: 1.536mm2


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: November 6, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
