Guva T21gh Uv Sensor Module - China

price: check with company for price

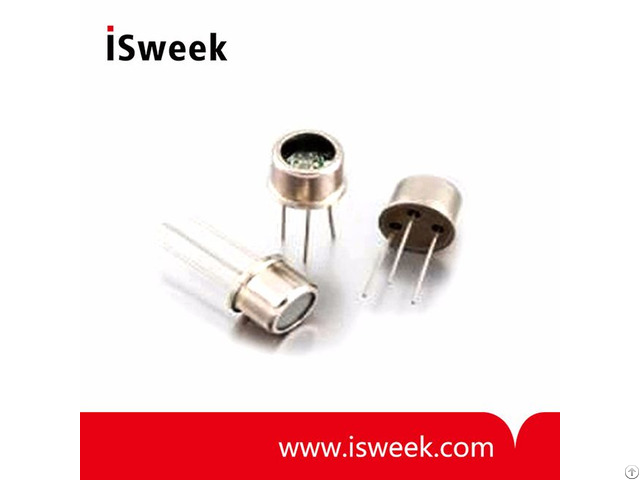

Guva T21gh Uv Sensor Module

Products Photos Catalog Guva T21gh Sensor Photos Catalog

1 - UV Sensor Module GUVA-T21GH Features

Single Supply Voltage Operation

Voltage Output

High Sensitivity and Good Solar Blindness

Small and Compact Size 2 - UV Sensor Module GUVA-T21GH Applications

UV-A Lamp Monitoring

/

3 - UV Sensor Module GUVA-T21GH Absolute Maximum Ratings

Storage Temperature: -40~90℃

Operating Temperature: -30~85℃

Supply Voltage: 5.5V

Soldering Temperature: 260℃

/

4 - UV Sensor Module GUVA-T21GH Characteristics (at 25℃)

Supply Voltage: 1.8~5.5V

Supply Current: 50µA

Responsivity: 1.8mV/nW

Spectral Detection Range: 220~370nm

Output Voltage: 1.88V

Offset Voltage: 0.01V

Detection Power Range: 0~2.7mW/cm2

Rising Time: 3ms


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: November 6, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
