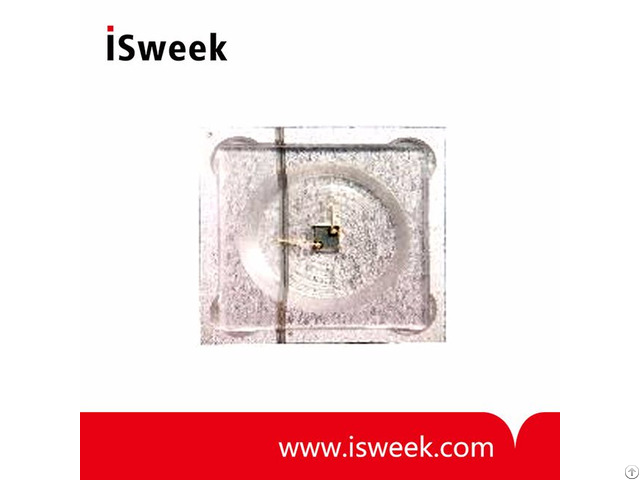

Guvb S31gd Uv B Sensor - China
price: check with company for price
1 - UV Sensor GUVB-S31GD Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current 2 - UV Sensor GUVB-S31GD Applications
UV-B Lamp Monitoring
UV Index Monitoring
/
3 - UV Sensor GUVB-S31GD Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/cm2
Soldering Temperature: 260℃
/
4 - UV Sensor GUVB-S31GD Characteristics (at 25℃)
Dark Current(Max.
): 1nA
Photo Current(Typ.
): 80nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.14A/W
Spectral Detection Range: 220~320nm
Active area: 0.076mm2
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: November 8, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
