Guvb T11gd L Uv B Sensor - China
price: check with company for price

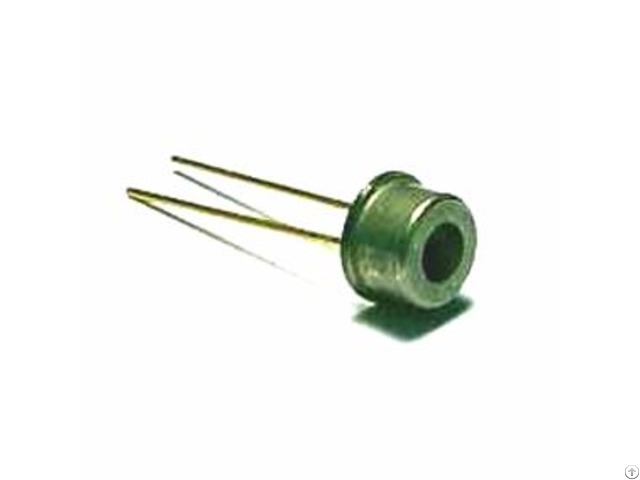

1 - UV Sensor GUVB-T11GD-L Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current /
2 - UV Sensor GUVB-T11GD-L Applications
UV-B Lamp Monitoring
UV-B LED Monitoring
/
3 - UV Sensor GUVB-T11GD-L Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.01µ~100m W/cm2
Soldering Temperature: 260℃
/
4 - UV Sensor GUVB-T11GD-L Characteristics (at 25℃)
Dark Current(Max.
): 20nA
Photo Current(Typ.
): 1.5µA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 1.536mm2
