Guvb T21gd U Uv B Sensor - China

price: check with company for price

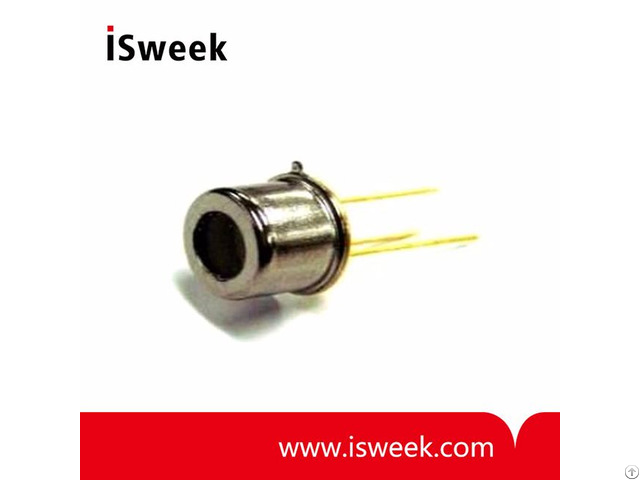

Guvb T21gd U Uv B Sensor

Products Photos Catalog Guvb T21gd Sensor Photos Catalog

1 - UV Sensor GUVB-T21GD-U Features

Aluminium Gallium Nitride Based Material

Schottky-type Photodiode

Photovoltaic Mode Operation

Good Visible Blindness

High Responsivity & Low Dark Current

/

2 - UV Sensor Applications

UV-B Lamp Monitoring

UV-B LED Monitoring

/

3 - UV Sensor Absolute Maximum Ratings

Storage Temperature: -40~90℃

Operating Temperature: -30~85℃

Reverse Voltage: 3V

Forward Current: 1mA

Optical Source Power Range: 0.001µ~100m W/cm2

Soldering Temperature: 260℃

/

4 - UV Sensor Characteristics (at 25℃)

Dark Current(Max.

): 90nA

Photo Current(Typ.

): 7.4 µA

Temperature Coefficient: 0.1%/℃

Responsivity: 0.13A/W

Spectral Detection Range: 220~320nm

Active area: 6.894mm2
