Guvc T10gd L Uv C Sensor - China

price: check with company for price

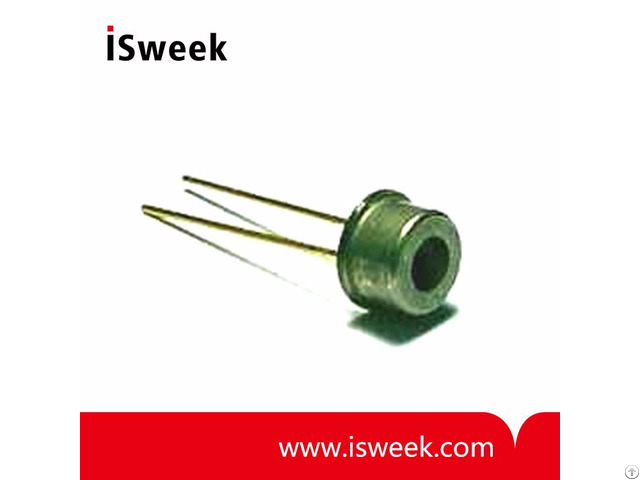

Guvc T10gd L Uv C Sensor

Products Photos Catalog Guvc T10gd Sensor Photos Catalog

1 - UV Sensor GUVC-T10GD-L Features

Aluminium Gallium Nitride Based Material

Schottky-type Photodiode

Photovoltaic Mode Operation

Good Solar Blindness

/

2 - UV Sensor GUVC-T10GD-L Applications

Pure UV-C Monitoring

Sterilization Lamp Monitoring

/

3 - UV Sensor GUVC-T10GD-L Absolute Maximum Ratings

Storage Temperature: -40~90℃

Operating Temperature: -30~85℃

Reverse Voltage: 2V

Forward Current: 1mA

Optical Source Power Range: 0.01µ~100m W/cm2

Soldering Temperature: 260℃

/

4 - UV Sensor GUVC-T10GD-L Characteristics (at 25℃)

Dark Current(Max.

): 20nA

Photo Current(Typ.

): 0.55µA

Temperature Coefficient: -0.07%/℃

Responsivity: 0.05A/W

Spectral Detection Range: 220~280nm

Active area: 1.536mm2


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: November 14, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
