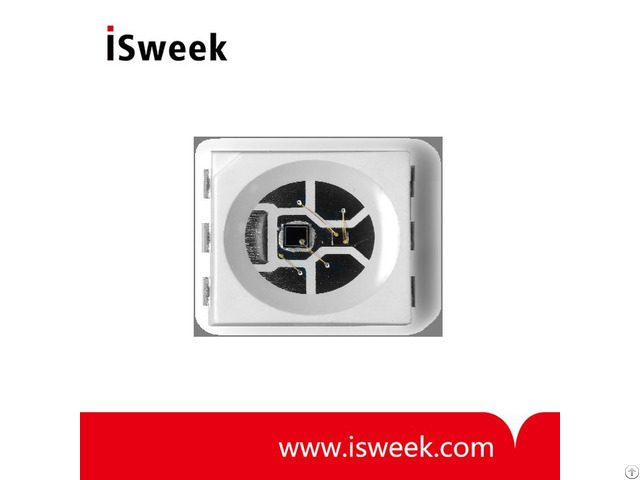

Guvf S31sd Uv Reflectance And Fluorescence Sensor - China
price: check with company for price
GUVF-S31SD UV Reflectance and Fluorescence Sensor Features Multi-Sensor for detecting UV and visible range light
UV detecting part - Detecting the UV range light
Fluorescence detecting part - Detecting the visible range light
/
GUVF-S31SD UV Reflectance and Fluorescence Sensor Applications
Money detecting
Counterfeits bill detecting
/
1 - GUVF-S31SD UV Detecting Part
Storage Temperature: -40 ~ 90℃
Operating Temperature: -30 ~ 85℃
Reverase Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.1 ~ 100, 000㎼/㎠ (UVA Lamp)
Soldering Temperature: 260℃
Dark Current: 1nA
Photo Current: 181nA (UVA Lamp, 1㎽/㎠)
Temperature Coefficient: 0.1%/℃ (UVA Lamp)
Responsivity: 0.18A/W
Spectral Detection Range: 240 - 395nm
Active area: 0.076mm2
/
2 - GUVF-S31SD Fluorescence Detecting Part
Storage Temperature: -30 ~ 100℃
Operation Temperature: -25 ~ 100℃
Reverse Voltage: 10V Soldering Temperature: 260℃
Dark current: 0.1㎂
Photo current: 190 ㎂
Temperature coefficient of ISC: 0.18%/℃
Spectral Detection Range: 420 - 700nm Peak wavelength: 640nm
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: August 2, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
