Guvv T10gd L Uv A Sensor - China

price: check with company for price

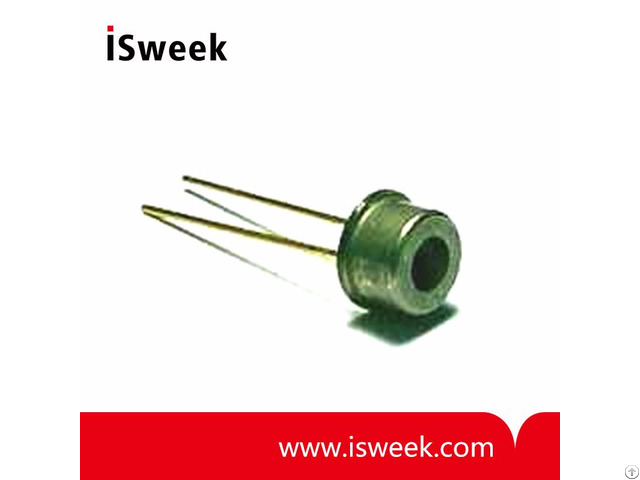

Guvv T10gd L Uv A Sensor

Products Photos Catalog Guvv T10gd Sensor Photos Catalog

1 - UV Sensor GUVV-T10GD-L Features

Indium Gallium Nitride Based Material

Schottky-type Photodiode

Photovoltaic Mode Operation

High Responsivity & Low Dark Current

/

2 - UV Sensor GUVV-T10GD-L Applications

Full UV Band Monitoring

UV-A Lamp Monitoring

Sterilization Lamp Monitoring

/

3 - UV Sensor GUVV-T10GD-L Absolute Maximum Ratings

Storage Temperature: -40~90℃

Operating Temperature: -30~85℃

Reverse Voltage: 2V

Forward Current: 1mA

Optical Source Power Range: 0.01µ~100m W/cm2

Soldering Temperature: 260℃

/

4 - UV Sensor GUVV-T10GD-L Characteristics (at 25℃)

Dark Current(Max.

): 20nA

Photo Current(Typ.

): 2.6µA

Temperature Coefficient: 0.1%/℃

Responsivity: 0.13A/W

Spectral Detection Range: 230~395nm

Active area: 1.536mm2
