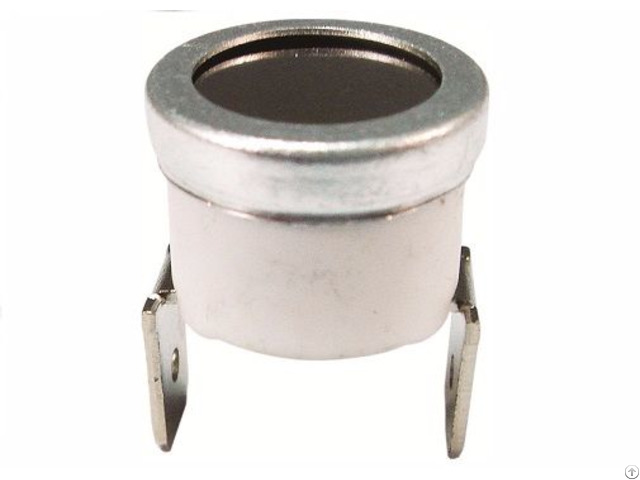

H2 33a Cr Normally Closed Ceramic Bimetal Thermostat - Taiwan

(1) CONTACT TYPE : Contact Opens When Temperature

Rises To Set Point; (Normally Closed)

(2) CAP TYPE : C Cap

(3) TERMINAL ORIENTATION : Vertical

(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )

Specification:

1 - Standards according : GB14536.1-1998, GB14536.10-1996, JB/T3751-1997

2 - Operation Temp: 16A/125V 0℃~230℃ ; 16A/250V 45℃~210℃

3 - Resistance between terminals: below 50 m Ohm at DC5V/0.25A (initial figure).

4 - Insulated resistance : above 100M Ohm (DC500V) at charged and non-charged portion.

5 - Dielectric strength : AC1500V for 1 second at charged and non-charged portion.

6 - Compliance : UL, VDE

7 - For example:

Type Off temp.

On.

temp.

Contact Dielectric

(C) (C) state rating

H2/33-230/200/113BH2 230+/- 8 200+/-12 N.C. 250V/125V/10A

HW H2 Series -

We can customize this bimetal thermostat according to client’s needs.

This snap action temperature switch in three single-pole, single-throw (SPST) switch actions:

Automatic Reset – either open or close its contacts on temperature rise.

Manual Reset – Available with contacts that open on temperature rise.

The contacts must be reset by pressing the button after the device cools down.

One shot – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below -35°C.

For clients who wish to have action temperature above 180°C, we’d recommend our ceramic thermostat H2 series.
