Hall Effect Sensor Ah3621 - China

Product Description

Features Rated working voltage 2.5 V ~ 12 V, the limit voltages as low as 3.0 V;

Operating temperature range: -25ºC ~ 85ºC; Rated output current(sink) : 10 mA, the maximum output current(sink): 20 mA

Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;

Small temperature drift between operating point and release point;

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements When the "S" pole of magnet faces the mark surface of the sensor and is closed to sensor(B ≥ Bop), the sensor outputs low level; When the magnet is far away from the sensor(B≤ BRP), the sensor outputs high level.

When the "N" pole faces to sensor's mark surface of sesor, the sensor is no response.

Stable hysteresis (BH= ∣BOP- BRP∣) ensures stable switch status of sensor.

The magnet and electric transfer characteristic curve of AH3621 is shown as the figure:

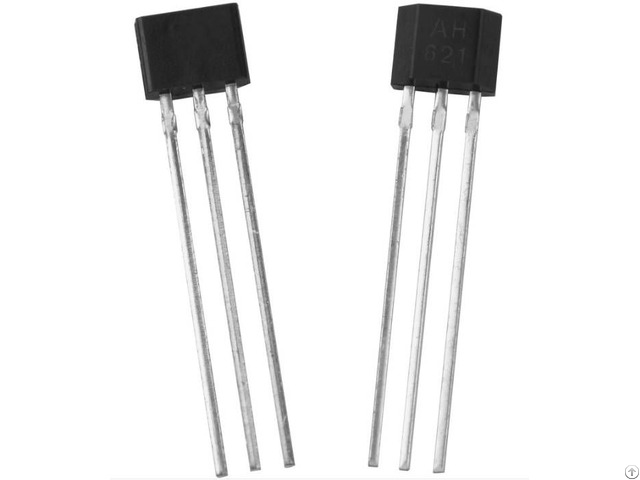

Hall sensor AH3621 is a kind of digital output Hall IC which produced by CMOS Technology.

The sensor chip is produced by CMOS technology, it owns low power consumption, and it has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger, and output driver and other circuit unit etc.

Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.
