Hanheld Single Phase Energy Meter Tester - China
price: 3255.00 Dollar US$

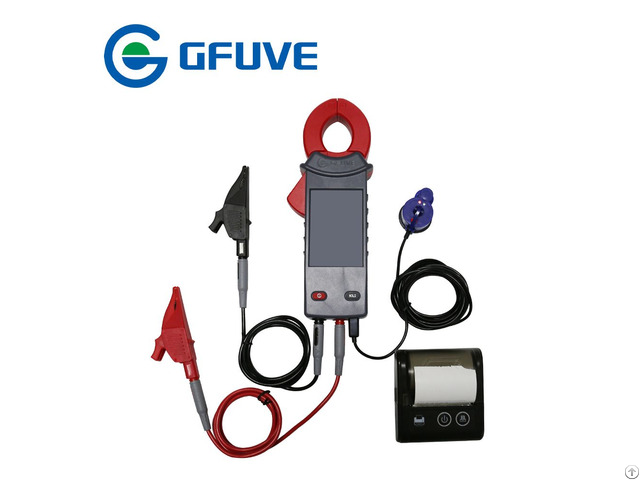

GF112D is a single-phase handheld electronic meter test unit in accuracy class 0.1or 0.2, used for testing single phase electricity meters error on site.
Wide measurement range from 1mA to 120A and 0 to 600V, and also can be used to test alternating current parameters - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc.
The integrated design of current clamp and meter makes it easier to use.
Parameter:
Accuracy: 0.1%, 0.2%
Voltage measurement range: 0-600V
Current measurement range: 1mA-120A
Harmonic: 2-63 times
Phase angle: 0-360°
Frequency range: 40-70Hz
Power factor: -1~0~1
Dimensions(mm): 225*61* 38
Weight (kg): 0.5 (mains);1.5 (accessory and box)
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
Published date: January 24, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
