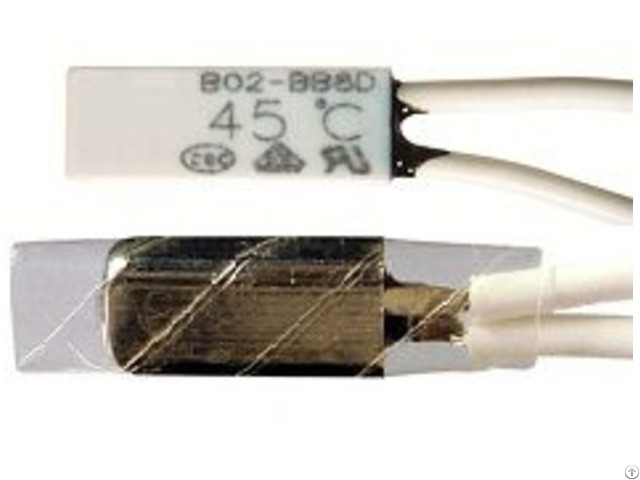

Hb02 Mini Size Low Resistance Snap Action Thermal Protector - Taiwan

Applications:

Battery packs, shaded pole motors, AC motor and pump, Fluorecent lighting ballasts, Transformers, Heating appliance, Portable power tools (Replacement of MM or V & Va Series)

Specification:

Dimension case 15*5.4*2.4mm

leading wire 70mm normal

Maximum contact ratings 10K(4A/12VDC 3A/24VDC 3A/120VAC 2A/250VAC)

Opening Temperature 30~155℃

Telorance ±5 ±3 ±1 ℃

Resistance less than 25 mΩ
