Hcl B1 Hydrogen Chloride Sensor - China

price: check with company for price

Hcl B1 Hydrogen Chloride Sensor

Products Photos Catalog Hcl Hydrogen Chloride Photos Catalog

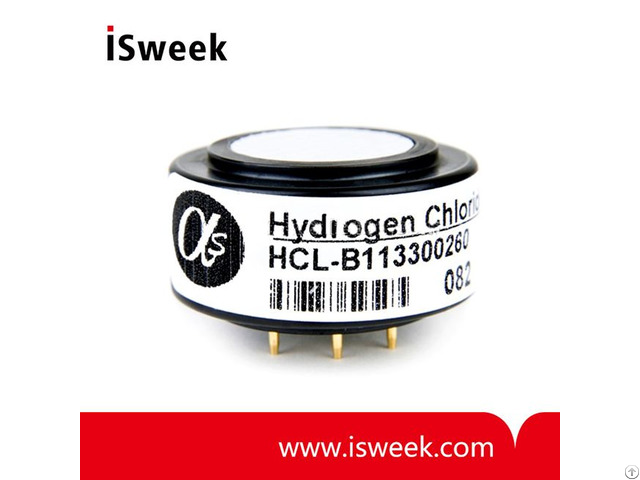

HCL-B1 Hydrogen Chloride Sensor HCL Sensor Description

Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.

/

Hydrogen Chloride (HCl)/Hydrogen Bromide (HBr)

The HCL sensor also detects Hydrogen Bromide (HBr).

These HCL sensors are zero biased for easier use.

Available in A and B series.

/

HCL-B1 Hydrogen Chloride Sensor HCL Sensor Specifications

• Range: 100ppm HCl limit of performance warranty • Sensitivity: 150 to 250 nA/ppm in 25ppm HCl • Response time t90: < 200 (s) from zero to 25ppm HCl • Resolution: < 0.1 RMS noise (ppm equivalent) • Temperature range: -30 to +50°C • Pressure range: 80 to 120 kPa • Humidity range: 15 to 90 % rh continuous • Weight: < 13 g

/

Matched Transmitter board for HCL-B1 HCL Sensor

4-20mA Analogue Transmitter Board • Factory calibration, custom-set for immediate use • Wide operating voltage range • Low RFI susceptibility

Alphasense 4-20 mA analogue transmitter boards provide a cost effective way for Original Equipment Manufacturers to engineer transmitter heads for fixed installation systems.

/

4-20mA Digital Transmitter Board • Factory calibration, custom-set for immediate use • Digital zero, sensitivity and temperature compensation • Digital and 4-20mA output • Biased or unbiased operation • Calibration and range change
